Aggregate Moisture Probes: A Complete Guide
What is an Aggregate Moisture Probe?
Aggregate moisture probes are specialized instruments designed to measure the moisture content in aggregates like sand, gravel, crushed stone, limestone, recycled asphalt pavement (RAP), and other materials commonly used in construction and mining industry.
Choosing the right sand moisture analyzer for your needs is crucial for maintaining the quality, consistency, and durability of the final products in which these materials are used. Whether for concrete production, asphalt paving, or other industrial applications, knowing the precise moisture content helps optimize the mix designs, ensure product integrity, and reduce waste.
There are two main types of aggregate moisture probes: on-line moisture probes and portable moisture meters.
On-line Aggregate Moisture Probes
On-line moisture probes are installed at various points within the production process to provide continuous, real-time moisture data. These probes can be placed on conveyor belts, under silos or clam gates, and in hoppers or bins.
By providing ongoing moisture readings, on-line probes enable operators to make immediate adjustments to the mix proportions, ensuring that the materials are neither too wet nor too dry. This continuous monitoring helps prevent issues such as poor compaction, segregation, or improper curing in concrete and asphalt products.
Portable Aggregate Moisture Meters
The portable sand and aggregate moisture meter is designed for fast on-site moisture testing, overcoming challenges of the conventional kiln-drying method. These handheld devices allow operators to quickly test the moisture content of material stockpiles on-site.
Unlike traditional methods such as kiln drying or oven drying, which are time-consuming and labor-intensive, portable meters offer a fast and efficient alternative. They are particularly useful in environments where materials are stored outdoors and are subject to varying weather conditions, as they enable frequent and quick moisture assessments.
The Ultimate Solution for Accurate Aggregate Moisture Analysis
Accurate aggregate moisture analysis is essential for several reasons:
- Quality Control: Aggregate moisture probes ensures that the final product meets the required specifications and standards. Variations in moisture content can lead to inconsistencies in the mix, affecting the strength and durability of concrete and asphalt.
- Cost Efficiency: By precisely measuring and controlling the moisture content, manufacturers can optimize the use of materials and reduce waste. Over-wet aggregates can lead to excess water in the mix, requiring additional cement or other binders to maintain the desired consistency. Conversely, under-wet aggregates may result in dry, crumbly mixes that are difficult to work with. This results in higher production costs and loss of valuable man hours that could be utilized elsewhere.
- Process Optimization: Real-time moisture data allows for immediate adjustments in the production process, improving overall efficiency. For example, in concrete production, adjusting the water-cement ratio based on real-time moisture readings can prevent batch-to-batch variations and ensure uniform quality.
- Environmental Impact: Efficient moisture measurement helps minimize the environmental footprint of construction projects by reducing the need for additional resources and energy-intensive drying processes. It also helps in adhering to environmental regulations and sustainability goals.
Applications in Various Industries
Aggregate moisture probes are used in various industries, including construction, mining, and recycling. In the construction industry, they are vital for producing high-quality concrete and asphalt. In mining, they help in the efficient processing and handling of raw materials. In recycling, accurate moisture measurement is essential for processing recycled aggregates and ensuring their suitability for reuse in new projects.
Are Aggregate Moisture Probes Accurate?

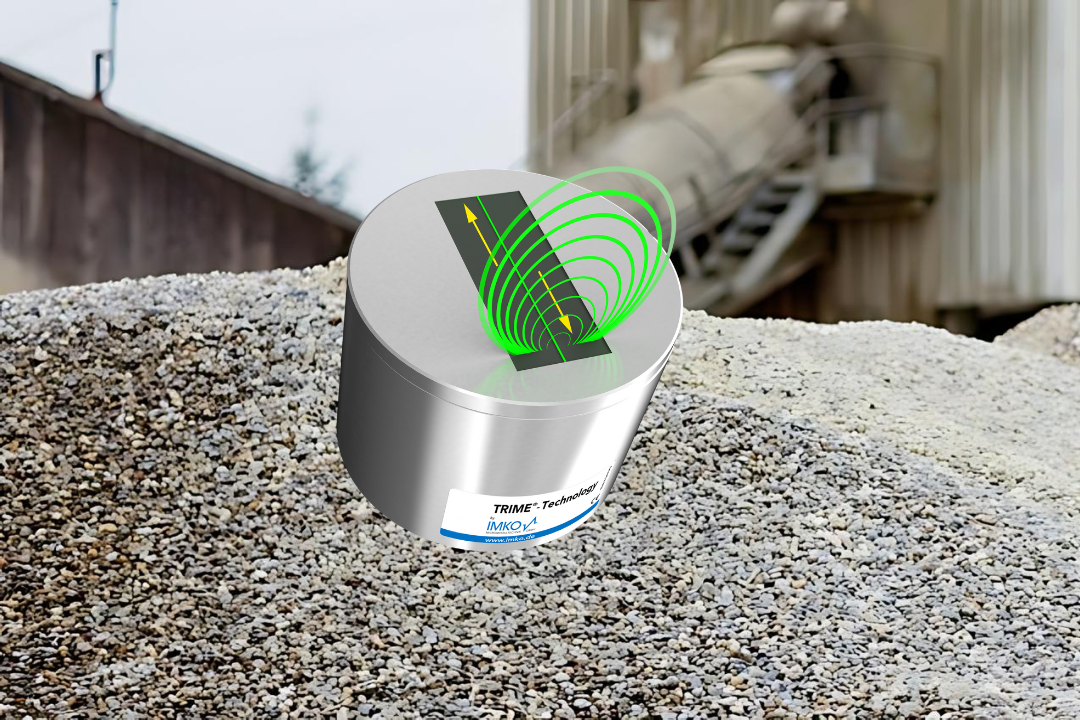

Yes, aggregate moisture probes, particularly those utilizing our patented TRIME® Time Domain Reflectometry (TDR) technology, are highly accurate. TDR technology is recognized for its precision, high resolution, deeper material penetration, and repeatability in measuring moisture content in aggregates.
Accuracy Levels of TRIME® TDR Technology
TRIME® Time Domain Reflectometry (TDR) probes are known for their exceptional accuracy, typically achieving measurement precision within ±0.1% to ±0.5% moisture content. This high level of accuracy is due to the advanced nature of TDR technology, which measures the dielectric properties of materials with great sensitivity and precision.
What should the Aggregate Moisture Content Meter Read?
The aggregate moisture content meter is essential for accurately measuring the moisture content, ensuring the quality and consistency of construction aggregates. Our TRIME® moisture meters, which utilize advanced Time Domain Reflectometry (TDR) technology, measure moisture content (%), temperature, and electrical conductivity (salinity), providing comprehensive data for optimal material management.
Ideal Moisture Content for Sand and Aggregates
- Sand:
- Ideal Range: Typically, between 2% and 6%.
- Implications: Proper moisture content in sand ensures the desired workability and strength in concrete mixes. Excess moisture can lead to a higher water-cement ratio, affecting the strength and durability of the concrete. Insufficient moisture can result in a dry mix that is difficult to work with.
- Aggregates (Gravel, Crushed Stone):
- Ideal Range: Generally, between 0.5% and 2%.
- Implications: For larger aggregates, moisture content is usually lower than in sand. Accurate measurement ensures that the aggregate contributes to the proper mix proportion and prevents issues such as segregation or poor compaction.
Comprehensive Moisture Measurement with TRIME Meters
Our TRIME meters go beyond just measuring moisture content. They also provide critical data on temperature and electrical conductivity, which are essential for a complete understanding of material properties:
- Moisture Content (%):
- Accurate measurement of the water content in sand and aggregates ensures optimal mix design and material performance.
- Temperature:
- Monitoring the temperature of aggregates helps in understanding and compensating for temperature effects on moisture content, which can influence the overall mix.
- Electrical Conductivity (Salinity):
- Measuring electrical conductivity provides insights into the salinity levels of the materials, which can affect the setting and strength of concrete.
How do Aggregate Moisture Probes Work?

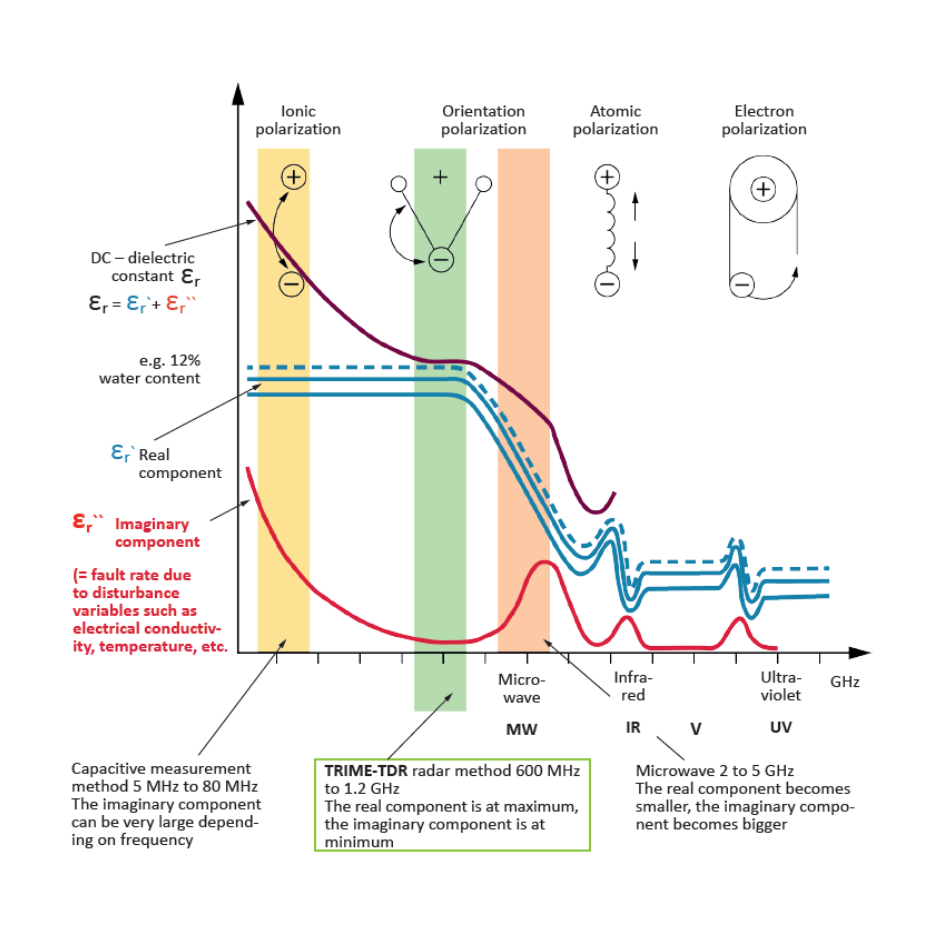

Modern aggregate moisture probes utilize advanced technologies such as Seztec’s patented TRIME® Time Domain Reflectometry (TDR), or microwave and capacitance sensors, to provide real-time moisture readings.
These technologies are capable of measuring moisture content in a variety of aggregate sizes and compositions, making them versatile tools for different applications. Our TDR technology, for example, works by sending a pulse along a probe and measuring the time it takes for the pulse to reflect back, which accurately correlates to the moisture content in the material.
Product Guide: Sand and Aggregate Moisture Probes
Accurate moisture measurement is vital for ensuring the quality and efficiency of construction processes involving sand and aggregates. Our range of moisture probes offers advanced solutions tailored to various applications. Here’s an overview of our products:
On-line Sand and Aggregate Moisture Probes
(1) SONO VARIO® Standard Sand Moisture Sensor
The SONO VARIO® Sand Moisture Sensor is designed for fine aggregates up to 4mm. It provides real-time moisture measurement, making it ideal for applications on conveyor belts. With a replaceable sensor head, it ensures continuous and accurate monitoring, optimizing mix designs and reducing waste.
(2) SONO VARIO Xtrem® Aggregate Moisture Probe
The Xtrem® Moisture Probe is tailored for coarse aggregates like gravel and crushed stone. This robust probe is perfect for harsh environments, offering continuous moisture monitoring that enhances the durability and strength of concrete mixes, and is suited for installation on conveyor belts and clam gates.
(3) SONO VARIO® Carbide Gravel Moisture Content Sensor
Specialized for gravel, the Gravel Moisture Content Sensor delivers high precision and durability. It provides real-time data feedback, ensuring optimal moisture levels during storage and processing, which is crucial for maintaining the quality and consistency of construction materials.
(4) SONO-SILO® Sand and Gravel Probe for Silos
The SONO-SILO® probe provides continuous moisture monitoring for sand and gravel within silos. It integrates easily with existing systems, ensuring consistent concrete quality during storage and preventing moisture-related issues that can affect the final product.
(5) Online Frac Sand Moisture Sensor
The Online Frac Sand Moisture Sensor is engineered to measure moisture in frac sand used in hydraulic fracturing. This sensor ensures that the sand’s moisture content is within the desired range for optimal performance during fracking operations, enhancing both efficiency and safety.
(6) Mineral Moisture Sensor SONO-VARIO HC®
The HC® Mineral Moisture Sensor is designed for various minerals, offering precise moisture measurements. Its versatility makes it suitable for diverse applications, ensuring that minerals are processed with the correct moisture content, which is vital for maintaining product quality and consistency.
Portable Aggregate Moisture Probes
(1) TRIME HD2® Portable Sand Moisture Sensor
The HD2® Portable Sand Moisture Sensor is a reliable handheld device for on-site moisture measurement of sand and aggregates up to 1.25 inches. Its user-friendly design allows for quick assessments, eliminating the need for lengthy drying methods and ensuring that material stockpiles are within the desired moisture range.
(2) SONO-M1® Portable Gravel Moisture Content Meter
The SONO-M1® Portable Meter offers accurate moisture measurement for gravel in a portable format. It is easy to operate and designed for field use, making it ideal for testing gravel at various locations and ensuring that moisture content meets the necessary standards for construction projects.
(3) SONO-M2® Portable Sand Moisture Probe
Featuring a 6ft extension rod, the SONO-M2® is perfect for measuring moisture in large sand and aggregate stockpiles. Its narrow wedge-shaped design allows deeper insertion, providing efficient and consistent moisture data, crucial for maintaining material quality in varying weather conditions.
(4) Portable Mineral and Coal Moisture Meter SONO-M1C®
The SONO-M1C® Coal Moisture Meter is designed for portable measurement of moisture in minerals and coal. This versatile device provides quick and accurate readings, making it ideal for field use and ensuring that these materials are processed with the appropriate moisture content for optimal performance.
Fresh Concrete Probes for Batch Plants
(1) SONO-MIX® Concrete Mixer Probe
The Concrete Mixer Moisture Probe is designed for zero slump concrete, providing real-time moisture data during the mixing process. It ensures consistent concrete quality, reduces batch rejections, and improves production efficiency by allowing for immediate adjustments based on accurate moisture readings.
(2) SONO-MIX MINI® Concrete Probe for Intensive Mixers
The SONO-MIX MINI is a compact mixer probe designed for intensive mixers or ready-mix concrete trucks. It offers accurate and reliable moisture measurement, optimizing the mix design and ensuring high-quality concrete production, which is essential for specialized mixing applications.
(3) SONO-WZ® Portable Fresh Concrete Moisture Meter
The SONO-WZ® is a portable meter for measuring moisture in fresh concrete. It offers immediate readings and is suitable for both field and laboratory use, ensuring that the fresh concrete has the optimal moisture content, thus enhancing the integrity and performance of the concrete structures.
Applications of Aggregate Moisture Probes in the Construction Industry
Accurate measurement of water content in aggregates and concrete is critical across various stages of construction processes. Here’s a detailed look at the applications of our moisture probes in batching or weighing, mixing, water and chemical addition, storage, and water/cement ratio analysis. Each of these applications plays a significant role in maintaining the quality, consistency, and efficiency of construction projects.
Batching or Weighing
Importance: Batching or weighing involves combining various raw and bulk materials in correct proportions to create concrete or other building materials. The moisture content significantly impacts the dry weight of these materials, affecting the final mix proportions. Accurate moisture measurement ensures that the correct proportions of materials are used, which is crucial for achieving the desired quality and strength in the final product.
Application:
- SONO VARIO Standard Sand Moisture Probe: Installed on conveyors or hoppers, this probe ensures precise moisture measurement of fine aggregates up to 4mm, helping maintain the correct proportions in the batching process. This ensures that the sand used in the mix is neither too dry nor too wet, which can affect the overall quality of the concrete.
- SONO VARIO Xtrem Aggregate Moisture Probe: Suitable for coarse aggregates, this probe ensures accurate moisture data, essential for proper weight adjustments during batching. Coarse aggregates such as gravel and crushed stone can retain varying amounts of moisture, which can significantly impact the dry weight and the mix ratio if not accurately measured.
Benefits:
- Ensures consistency in the final mix.
- Reduces the risk of material wastage.
- Enhances the accuracy of batching operations.
- Improves the overall quality of the final construction materials.
Mixing
Importance: Mixing is a critical phase where various materials, including cement, aggregates, and water, are combined to form concrete. Accurate moisture measurement ensures the right water-cement ratio, affecting the strength and workability of the mix. An incorrect water-cement ratio can lead to concrete that is either too weak or too difficult to work with, impacting the final structure’s integrity.
Application:
- SONO-MIX Concrete Mixer Probe: Provides real-time moisture data during the mixing process, ensuring the correct water-cement ratio. This is particularly important for producing high-quality concrete that meets specific strength and durability requirements.
- SONO-MIX MINI Moisture Probe for Concrete Batch Plants: Ideal for smaller mixers, offering precise moisture measurement to maintain the mix’s consistency and quality. Intensive mixers often handle smaller batches of concrete, making precise moisture control crucial for achieving uniform results.
Benefits:
- Ensures uniform quality of concrete.
- Reduces batch rejections.
- Enhances the durability and strength of the final product.
- Optimizes the mixing process, reducing the need for rework and improving efficiency.
Water and Chemical Addition
Importance: Accurate addition of water, chemicals, and additives is crucial for achieving the desired properties of concrete. Moisture content in aggregates affects the total water requirement, which in turn impacts the final product’s performance. Additives and chemicals used in concrete, such as plasticizers, retarders, and accelerators, require precise moisture control to function effectively.
Application:
- TRIME HD2 Portable Sand Moisture Meter: Provides quick on-site moisture assessments, helping adjust water and additive addition accurately. This ensures that the concrete mix has the right consistency and workability for various construction applications.
- SONO-SILO Concrete Probe for Silos: Continuous monitoring of moisture in stored materials ensures proper water and chemical addition when these materials are used. This is particularly important for large-scale operations where consistent moisture control can significantly impact the quality of the concrete.
Benefits:
- Optimizes the use of water, chemicals, and additives.
- Prevents over-watering or under-watering, which can affect concrete properties.
- Enhances the efficiency and effectiveness of chemical admixtures.
- Improves the overall performance and longevity of the final concrete product.
Storage
Importance: Proper storage of raw materials is essential to maintain their quality and consistency. Moisture content can change due to environmental conditions, affecting the material’s usability. Ensuring that aggregates and other materials are stored with the correct moisture content helps maintain their integrity and suitability for use in construction.
Application:
- Gravel Moisture Content Meter: Ensures accurate moisture measurement in gravel during storage, maintaining material quality. Gravel and other coarse aggregates can absorb moisture from the environment, making it essential to monitor their moisture content regularly.
- Online Frac Sand Moisture Sensor: Monitors moisture levels in frac sand, ensuring it is stored under optimal conditions. This sensor is particularly useful in the oil and gas industry, where frac sand must meet specific moisture requirements to be effective in hydraulic fracturing operations.
- SONO-M1 Portable Aggregate Moisture Content Meter: Ideal for on-site testing of moisture levels in stored aggregates, this portable device ensures that materials maintain their quality and are ready for use when needed. It provides quick and accurate readings, helping prevent moisture-related issues during storage.
Benefits:
- Prevents material degradation due to moisture changes.
- Maintains the quality of stored materials.
- Reduces the need for reprocessing or additional treatment.
- Ensures that materials are ready for use when needed, without the risk of moisture-related issues.
Water/Cement Ratio Analysis
Importance: The water/cement ratio is a critical factor that influences the strength, durability, and workability of concrete. Accurate measurement and control of this ratio are essential for producing concrete that meets specific performance criteria.
Application:
- SONO-WZ Portable Fresh Concrete Moisture Meter: This portable meter is designed for real-time analysis of the water/cement ratio in fresh concrete. By providing immediate moisture readings, it allows for precise adjustments to ensure the optimal water/cement ratio. This is particularly important for ensuring that the concrete achieves the desired properties, such as compressive strength and resistance to environmental factors.
Benefits:
- Ensures the production of high-quality concrete with the desired properties.
- Enhances the structural integrity and durability of concrete structures.
- Reduces the likelihood of mix rejections and the need for adjustments during the mixing process.
- Facilitates compliance with industry standards and specifications.
Our sand, concrete, and aggregate moisture probes provide precise and reliable moisture measurements across various stages of the construction process. From batching and mixing to water and chemical addition, storage, and water/cement ratio analysis, these tools ensure the consistent quality of construction materials, optimize resource usage, and enhance overall process efficiency. Implementing our moisture measurement solutions helps reduce material wastage, improve product quality, and increase operational efficiency. For more detailed information about our products and their applications, contact us today.
By investing in accurate moisture measurement tools, construction companies can achieve better control over their processes, leading to higher quality outputs, reduced costs, and improved sustainability. These benefits translate to more reliable and durable construction projects, meeting industry standards and client expectations.
