Portable Ultrasonic Flow Meter
A portable ultrasonic flow meter measures fluid flow from outside the pipe. By utilizing two ultrasonic sensors, the sound waves are transmitted across the pipe to accurately determine the transit time of a liquid or gas. The recorded transit time is used to mathematically infer the flow rate of the fluid.
Portable Ultrasonic Flow Meter Theory
The transit time difference (∆t) between the upstream and downstream transducer signals directly correlates with the velocity of the fluid. Additionally, knowing the cross-sectional area (A) of the pipe allows us to calculate the flow rate (Q) using mathematical formulas.
These parameters enable precise determination of flow rates with 0.5%-2% accuracy, making these meters invaluable tools for various industries requiring accurate flow measurement.
Applications of Portable Ultrasonic Flow Meter
Portable ultrasonic flow meters offer versatile solutions for a wide range of applications across various industries. From verifying the accuracy of installed flow meters to optimizing pump performance, these compact devices play a crucial role in ensuring efficient flow measurement and management.
Flowmeter Verification:
Portable ultrasonic flow meter can be used to check if installed flow meters are working accurately in industries like HVAC and chemical processing plants.
Flow Surveys:
Municipal water authorities use portable ultrasonic flow meters to check water distribution systems. This helps them find areas of high or low flow, detect leaks, and make the system more efficient.
Leak Detection in Chilled Water Networks:
In buildings with chilled water systems, portable ultrasonic flow meters find leaks by measuring flow rates. This helps prevent energy wastage and saves costs.
Pump Flow Optimization:
In industries using pumps such as HVAC, portable ultrasonic flow meters help engineers adjust CHW or condensor pump settings for efficient flow rates. This saves energy while maintaining performance.
Portable Flow Meters by Seztec USA

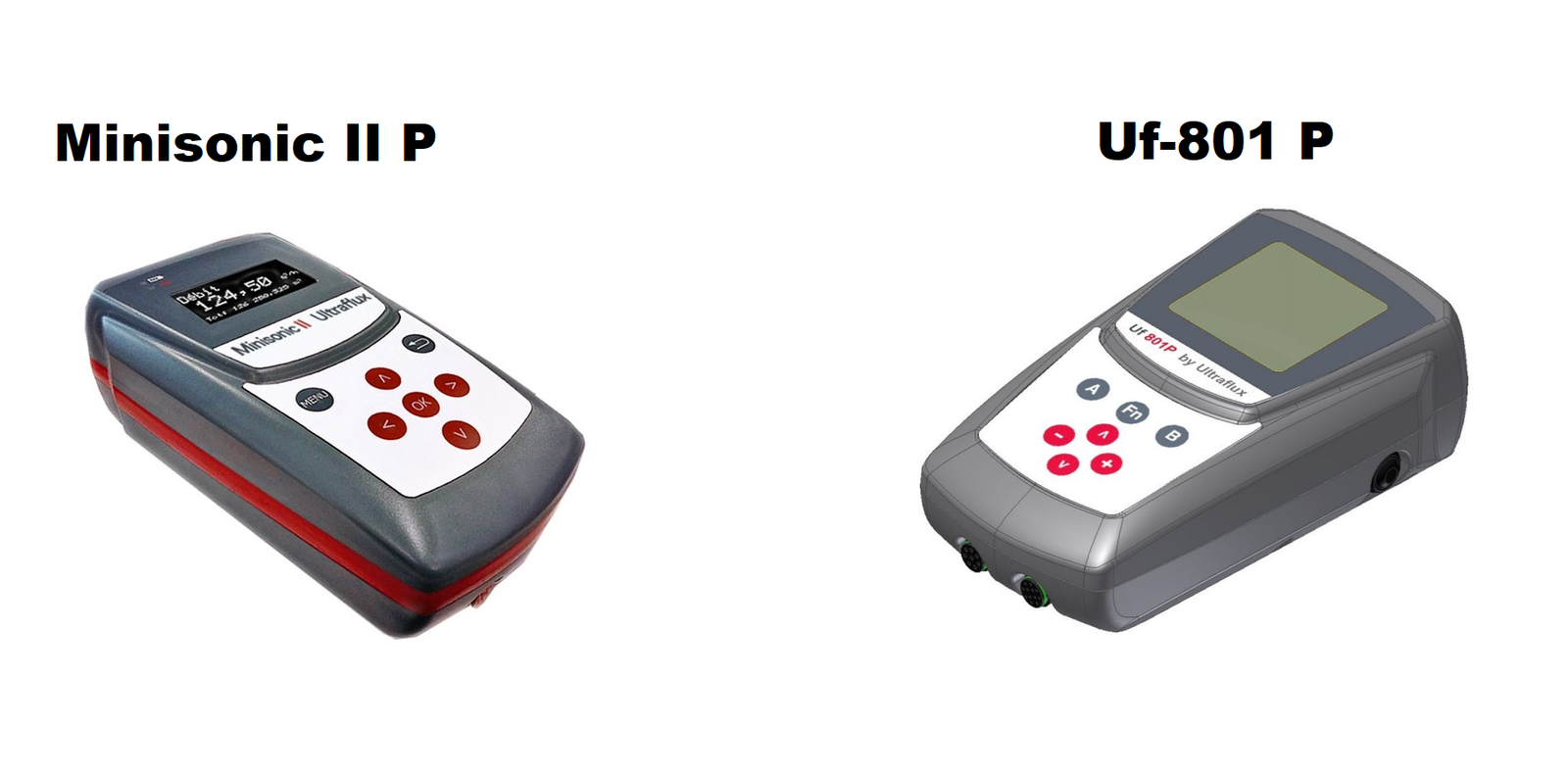

In the world of portable flow measurement, Seztec USA introduces two game-changers: the Ultraflux Uf-801 P and Minisonic II P portable ultrasonic flow meters. These devices redefine standards with their top-notch performance and versatility.
With the Ultraflux Uf-801 P and Minisonic II P, users can expect unparalleled performance and reliability. Whether measuring flow rates in wastewater management, industrial processes, or HVAC systems, these meters deliver precise and dependable results every time. Their versatility makes them indispensable tools across a wide range of industries and applications. Unsure about which one best suits your needs? Perhaps the comparison table will assist you.
| Feature | Ultraflux Uf-801 P | Ultraflux Minisonic II P |
| Technology | Ultrasonic Transit Time | Ultrasonic Transit Time |
| Pipe Diameter Range | 0.5″ to 393″ (10mm to 10,000mm) | 0.5″ to 393″ (10mm to 10,000mm) |
| Signal Treatment | DSP (Digital Signal Processor) | Analog Echo Control |
| Measurement Channels | Dual Pipe (Dual Flow Channel) | Single Pipe (Single Flow Channel) |
| Built-In Datalogger | Yes (Export using PC Software) | Yes (log file exported into a USB drive) |
| Protection Class | IP68 (water-proof) | IP68 (water-proof) |
| Thermal Energy Measurement (BTU) | Yes (optional) | No |
| Battery Life | Up to 14 hours | Up to 70 hours (with autonomous mode) |
| Compatible Transducers | Regular and High Performance Sensors | Regular Sensors Only (500 KHz, 1 MHz, 2 MHz) |
| Dedicated PC Software | Yes | No |
| Key Applications | Suitable for Difficult Industrial Applications Requiring High Performance. | Perfect for Straightforward Flow Applications Such as Water, Chemical, Glycol, Seawater, Oils, Fuels etc. |
Which Portable Ultrasonic Flow Meter is Best for You?
At Seztec USA, we understand the importance of selecting the right flow meter for your specific needs. Our friendly and knowledgeable engineers are here to assist you every step of the way. Call us today! and let us help you with your flow measurement needs.
