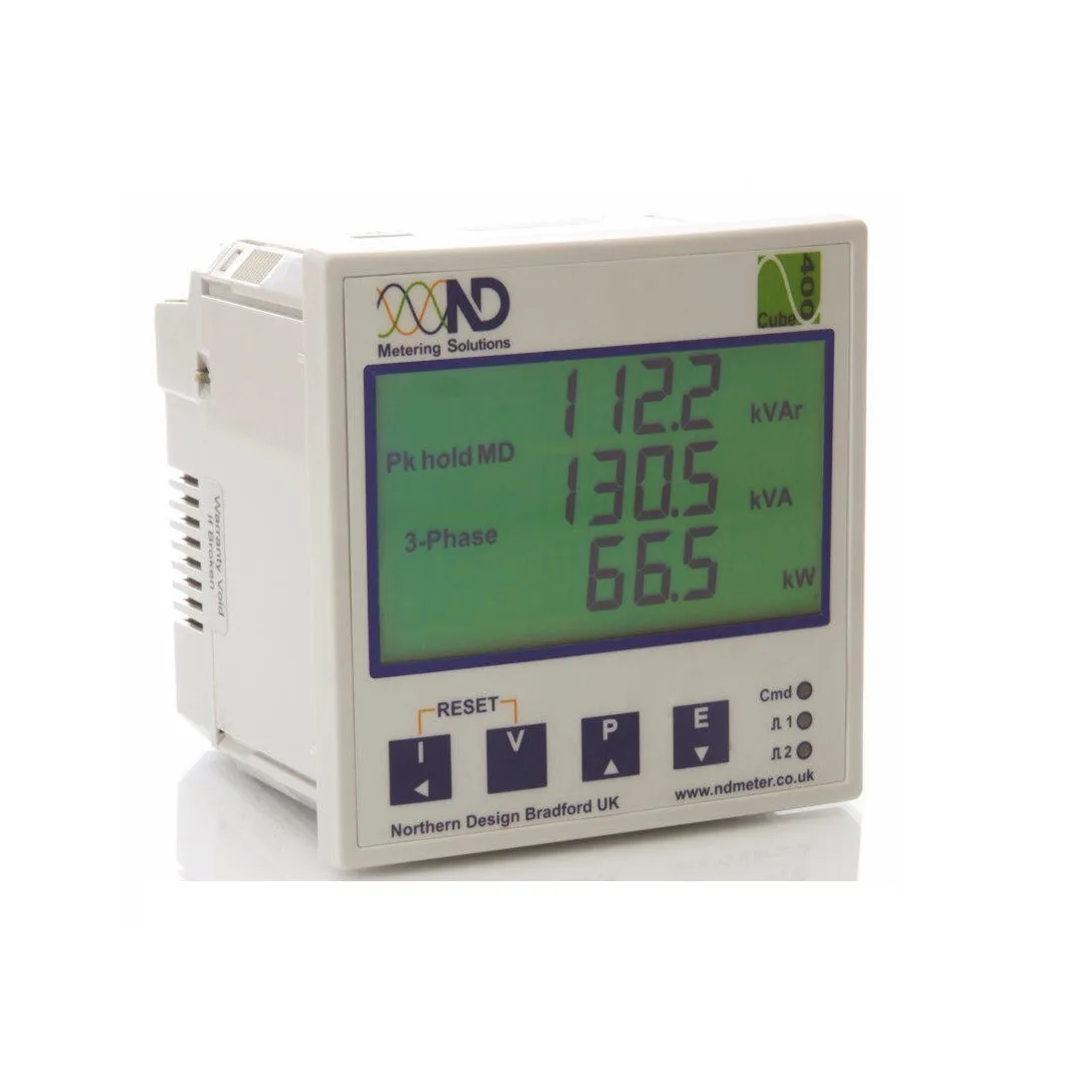

Cube 400 Multifunction Sub-Meter

Description

Introducing the Cube 400: Empowering Energy Management with Precision and Flexibility

Are you ready to revolutionize your approach to energy management? Meet the Cube 400, a cutting-edge metering solution meticulously crafted to cater to the diverse needs of both energy managers and electrical engineers. This powerhouse not only provides a robust platform for in-depth power quality analysis but also boasts an unparalleled flexibility in communication outputs, ensuring it seamlessly integrates into any setup.

Key Features:

1. Powerful Platform for Power Quality Analysis: The Cube 400 is not just a meter; it’s a sophisticated tool designed to empower you with the ability to analyze power quality comprehensively. Uncover valuable insights to enhance your energy management strategy.
2. Flexible Communications Output: Tailor your communication setup effortlessly with the Cube 400. Its flexibility allows for a seamless integration into various environments, offering pulse output, RS485 MODBUS, and IP Ethernet options. Now, you can adapt to your requirements without compromise.
3. Clear Data Display in Any Environment: In switch-room environments, clarity is paramount. The Cube 400 addresses this with its backlit 3-line display, ensuring that data is presented vividly and comprehensibly even in challenging settings.
4. Versatile Terminal Connections: With large rising cage terminals, the Cube 400 accommodates a wide range of cables, from 0.25mm to 4mm sq. This versatility simplifies the installation process, providing a hassle-free connection experience.
5. Advanced TCP/IP Protocols: The Cube 400 supports TCP/IP protocols like HTTP, FTP, TFTP, and SNMP, making it the ideal choice for direct interfacing with energy management software and building control solutions. Say goodbye to the need for additional data loggers or concentrators.
6. Expanded Functionality with Cube 400 IP: Elevate your capabilities with the Cube 400 IP, the IP-enabled version that goes beyond the basics. Enjoy data logging functionality, 3 additional Pulse inputs, and 2 pulse/alarm outputs. Collect utility data effortlessly, including electricity meters, water, air, gas, and steam.
7. User-Friendly Web Pages: The Cube 400’s IP Ethernet functionality brings convenience to your fingertips. Access crucial instantaneous values and setup pages with ease, allowing you to make real-time adjustments to meet your evolving needs.

Seize control of your energy management strategy with the Cube 400 – a powerhouse of precision, flexibility, and innovation. It’s not just a meter; it’s your key to unlocking a new era of efficiency and insight. Upgrade to the Cube 400 and redefine what’s possible in energy management.

Features

• 3Ø energy and power sub-meter
• Standard 96×96 DIN Panel Mount
• Pulse Output, MODBUS & Ethernet comms options
• Measures comprehensive range of energy
and power parameters
• 2 pulse outputs
• 2nd pulse output gives kVArh/kVAh through selection link
• Auto-CT rotation OR Factory Set Import/Export Option
• 5/1Amp & mV retrofit CT input options
• Individual Harmonics to the
15th,THDtothe30th Option
• Custom wall mount enclosure option.
• Hours run
• 5 Year Warranty
• CE, UL, C-Tick accredited.

Model Options

MODBUS RS485 Option
• Comprehensive range of energy & power parameters on LCD & MODBUS
• Optional Individual Harmonics to the 15th &THDtothe30th
on LCD & over MODBUS

IP Ethernet Option
• Web pages show energy, power, volts, amps, power factor, & digital input/output set-up
• Log upto 60 parameters
• Set up logging for FTP/HTTP/TFTP, SNMP for directly interfacing with energy management software &
building control solutions
• 3 scalable Digital Pulse Inputs can measure other utilities eg gas & water etc
• 2 digital alarm outputs
• 2 pulse outputs
• Individual Harmonics to the 15th,THDtothe30th over MODBUS TCP/IP standard
• Comprehensive range of energy & power parameters over IP Ethernet & smaller selection on display

Cube 400 Brochure
