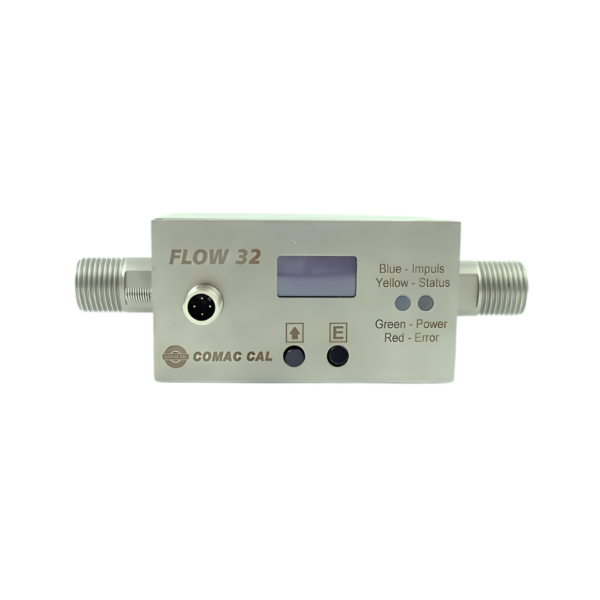

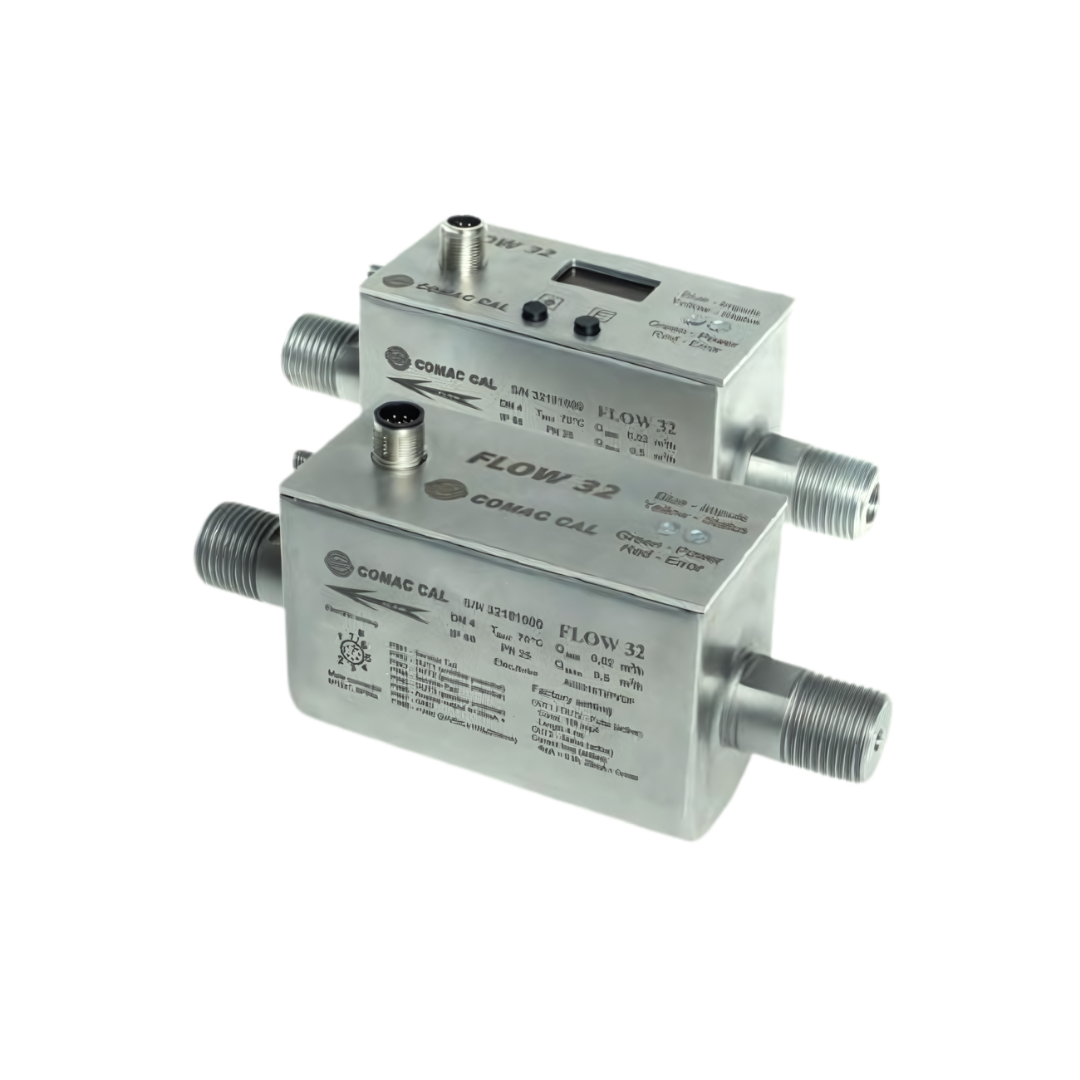

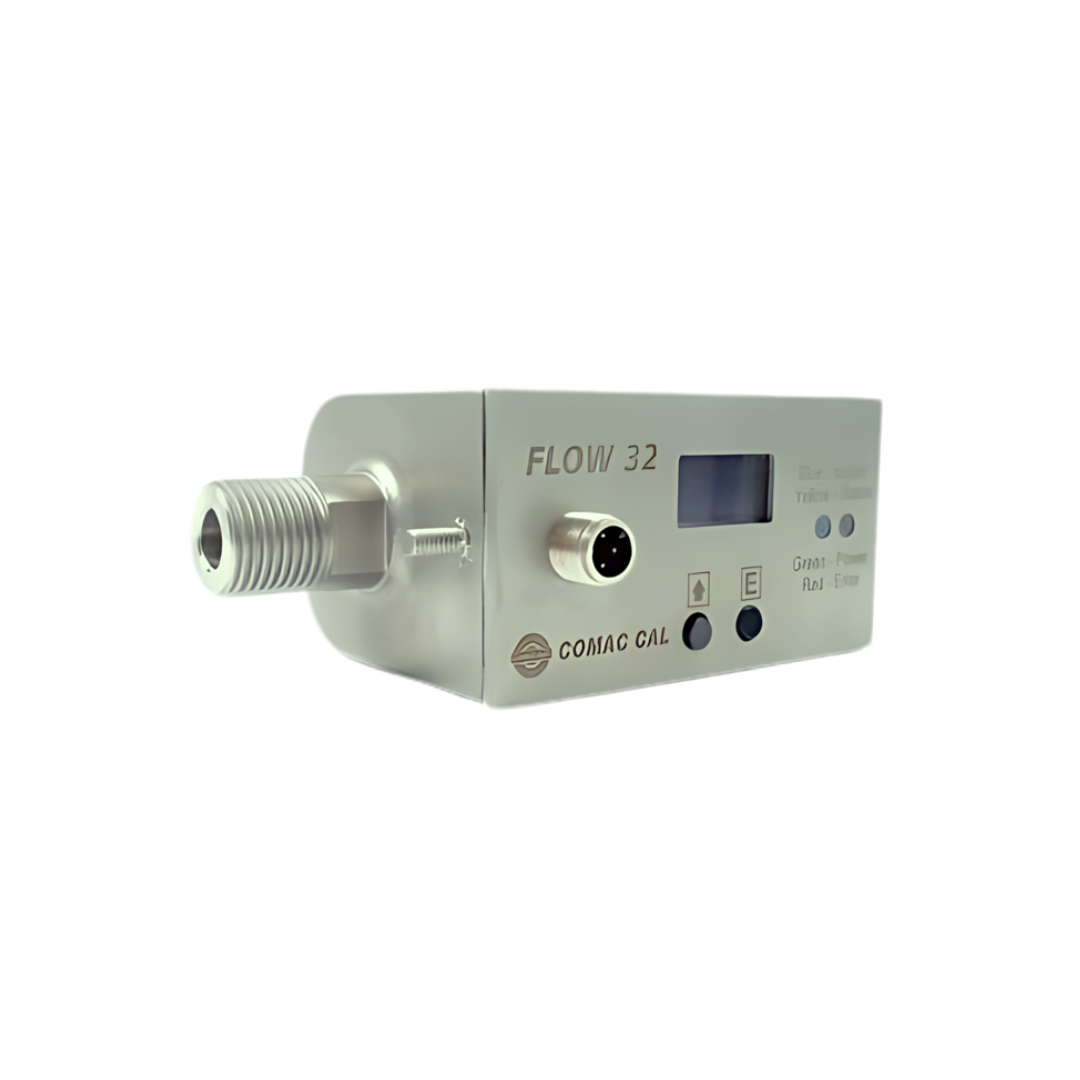

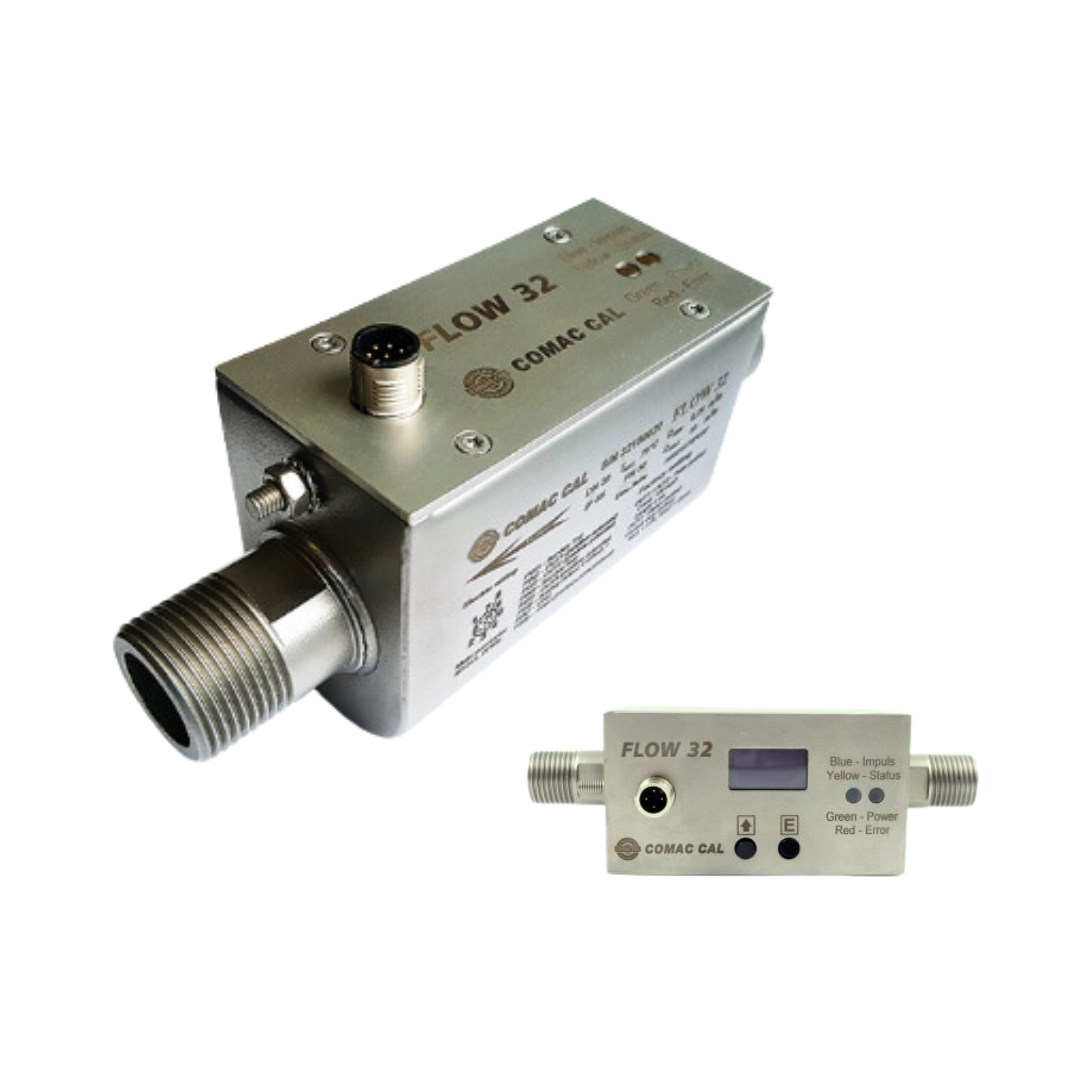

ELECTROMAGNETIC LIQUID FLOW METER – FLOW 32

Efficient. Economical. Maintenance-Free.

The FLOW 32 electromagnetic liquid flow meter offers a seamless and cost-effective solution for your flow measurement needs. Designed for versatility and ease of use, this flow meter comes in two versions: with a display unit for real-time monitoring or without a display for straightforward applications. Both versions boast a robust IP65 rating, ensuring reliability in various technological processes and production environments where simplicity and minimal maintenance are paramount.

Applications in Industry

The FLOW 32 electromagnetic liquid flow meter is highly adaptable, making it perfect for a range of industrial applications, including:

• Food Processing: Ideal for dairy operations and other food production processes.
• Chemical Industry: Suitable for monitoring service fluids at gas stations, including washer fluids and other selected liquids.

Key Technical Properties

• Power Supply: Standard 24VDC supply voltage.
• Output Options: Choose between impulse output (customizable constant and pulse width) or 4..20 mA analogue output.
• Flow Switch Functionality: Can be used as a flow switch, with optional dead zone settings.

Main Advantages of the Electromagnetic Liquid Flow Meter

• Easy Installation: Simple electrical connection via cable entry to the terminals.
• No Connectors Needed: Supplied without connectors for straightforward setup.
• High Repeatability: Consistent and accurate measurements across the full-scale flow range.
• Durability: High resistance to abrasion ensures long-term reliability.
• Versatility: Suitable for measuring a wide range of media, excluding crude oil products.
• Flow Monitoring: Integrated flow switch function for enhanced monitoring capabilities.

Experience the Ease of FLOW 32

With its user-friendly design, the FLOW 32 electromagnetic liquid flow meter excels in easy installation and minimal maintenance, making it the ideal choice for industries seeking reliable and economical flow measurement solutions.

• Volumetric flow meter
• medium: Conductive liquid
• volume flow/flow switch
• measuring range: 0.02-10 GPM
• measurement accuracy: ± 1%
• pressure measurement range max. 25 bar (PN25)
• medium temperature: max 158 °F (70 °C)
• process connection: DN6 to DN32
• Metric G thread on body G 1/2″, G3/4″, G1″, G 1-1/4″
• IO-Link (A1)
• Bluetooth and IO LINK (A2)
• LCD display and IO LINK (A3)
• 4x LED; LCD display (4×8)
• 2x LEDs indicate status of the meter by three colors
• OUT 1: pulse
• OUT 2: pulse/flow switch/flow direction
• OUT 3: fail status
• Analog output: 4–20 mA
• Degree of protection: IP65/68
• power supply: 24V DC±15%
• seal material: Silicon
• connection: M12 connector
• Bluetooth® for start-up
