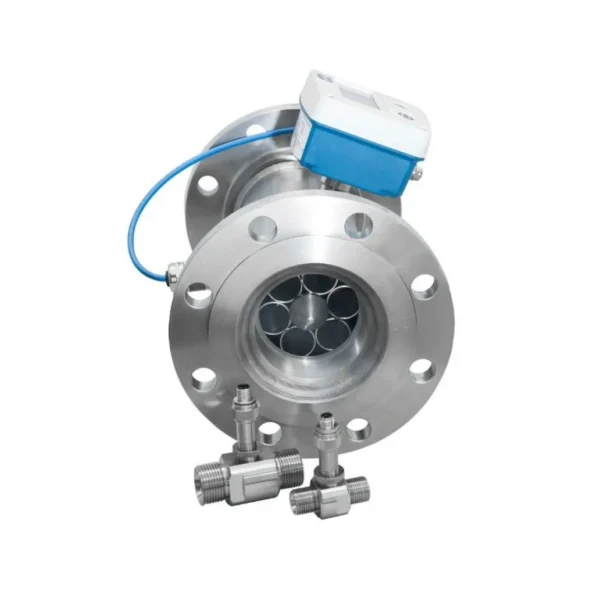

IC-GTM Gas Turbine Flow Meter
The Metri IC-GTM Gas Turbine Flow Meter is accurate and highly reliable across a wide range of gas types and applications.
- Description
- Additional information
- Downloads
Description
The Metri IC-GTM Gas Turbine Flow Meter is a traditional Axial Gas Turbine Flow Meter for use with a variety of dry and wet gases such as gas, steam and air. The GTM is available in a wide range of body sizes and styles, is highly accurate and has a robust design for even the most demanding of industrial applications and sectors.
The Metri IC-GTM Gas Turbine Flow Meter provides reliable performance regardless of varying density, pressure or temperature fluctuations.
Metri IC-GTM Turbine Flow Meters Features:
- Available in a range of pipe/line sizes
- Delivers accurate measurement
- Excellent linearity & repeatability
- 316 Stainless steel construction
- Flexible design with custom options available
- High pressure rating of up to 1000 bar
- Wide range of dry and wet gas applications ie. Hydrogen etc.
- High temperature option up to 350°C
- Selection of flow instruments & displays for compact or remote installation
- 50 – 2500 Hz frequency range
- Choice of outputs including pulse, 4-20 mA
- ATEX rated option available
The Metri IC-GTM is compatible with the following displays:
- Metri FMS – flow rate / totalizer 4-20mA & alarm output
- Fluidwell F series displays
Additional information
| Pipe Size | DN15 – DN300 (other sizes are available on request) |
|---|---|
| Material Body | Stainless steel 316 (316L available as an optional extra) |
| Flow Range | 0.44 – 2000 m³/hr |
| Accuracy | 2% |
| Operating Temp Range | -40áµ’C up to 350áµ’C |
| Pressure Range | 400 bar as standard (up to 1000 bar is available on request) |
| Outputs & Comms | Pulse / analogue output modules; flow transmitter; Variable reluctance coil only (mV) |
| Insertion / Inline | Inline (Horizontal or vertical flow rising, full pipe only) |
| Fluid Type | Gas (ie. Hydrogen, Nitrogen, Xenon, Natural gas, methane, propane etc), steam, air |
| Applicable Liquids | Dry and wet gases compatible with 430, 174PH and Duplex stainless steels |
| Power | None, Battery -24vd 110-240 VAC |
| Approvals | CE, ATEX EEx ia Ex d, PED category 2 Gases and Liquids, IECEx, CSA |
| Connection Type | BSPP (parallel) & BSPT (taper) female threaded, DIN & ANSI flanged; other on request eg PNXX, tri-clamp, NPT, RJT, Weco, Autoclave |
| Calibration | This product can be calibrated for 5 or 10 point, to maintain the optimum accuracy this product needs to be recalibrated annually. |
