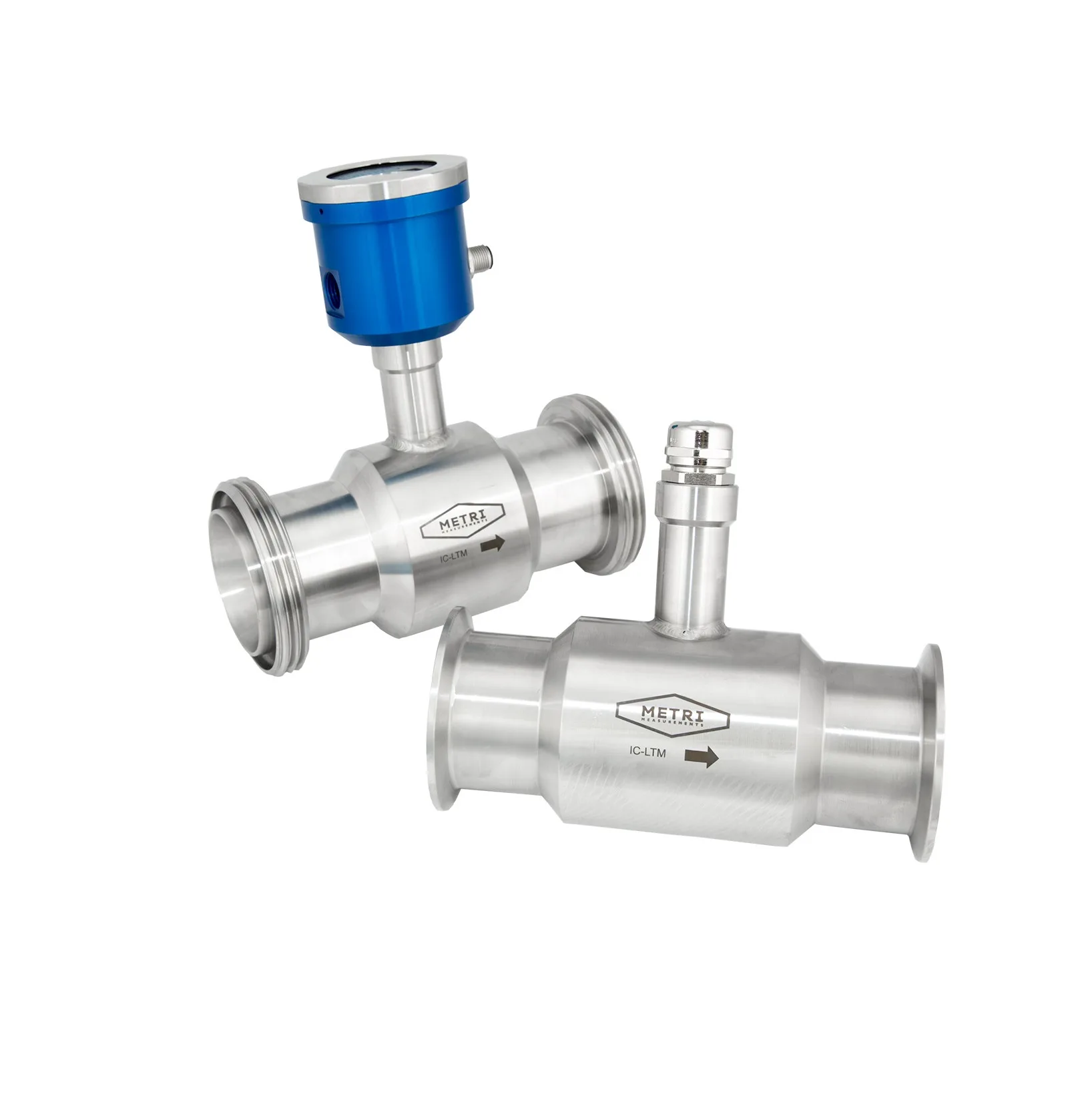

IC-HBT Hygienic Turbine Flow Meter
The Metri IC-HBT Hygienic Turbine Flow Meter is accurate and highly reliable across a wide range of gas types and applications.
- Description
- Additional information
- Downloads
Description
Designed specifically for use within hygienic environments; the Metri IC-HBT Hygienic Turbine Flow Meter is ideal to use in the Brewing, Food Processing and Pharmaceutical industries.
The HBT offers a high level of accuracy and durability as well as being easy to install. It is perfectly suited to applications that will be handling liquids in a hygienic process.
The Metri IC-HBT Hygienic Flow meter comes complete with hygienic Tri Clamp and RJT connections. All wetted parts are precision machined from solid stainless-steel with no castings. This provides excellent long-term viability, even in harsh conditions. The HBT is manufactured to an extremely high standard for use within hygienic environments as standard; electro-polishing is also offered as an optional extra for applications that require an additional level of finish.
Everything has been thought of in the manufacture of the Metri Hygienic Turbine Flow Meter; especially cleaning and maintenance. The bearings of the meter can be easily cleaned by using low pressure steam and chemical in place (CIP); essential where components can be difficult to reach when in-situ.
Typical liquid food installations include:
- Syrups
- Water
- Vegetable Oils
- Foodstuffs
- Vinegars
Typical HXX applications include:
- Metering
Metri IC-HBT Hygienic Turbine Flow Meter Features:

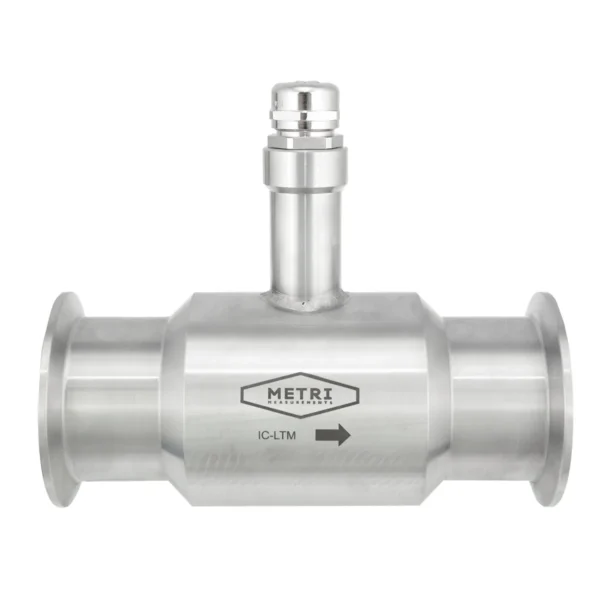

- Hygienic Tri Clamp & RJT connections
- Solid stainless-steel construction
- Electro-polish optional finish
- Low pressure steam clean
- Compatible with IC-LPS Flow Switch
Additional information
| Pipe Size | DN 12-80MM |
|---|---|
| Material Body | Stainless Steel 316 |
| Flow Range | 2 – 2250 l/min |
| Accuracy | From +/- 0.25% |
| Operating Temp Range | -40 to + 230 Deg C |
| Pressure Range | Depends on connection type 10-16 Bar typical |
| Outputs & Comms | 4-20mA +Pulse +Alarm+ Comms |
| Insertion / Inline | Inline |
| Fluid Type | Clean/semi clean liquids |
| Applicable Liquids | Water, Oils, Beer, Foodstuffs |
| Power | Battery, 12-24VDC 110-240 VAC |
| Approvals | CE |
| Connection Type | Tri Clamp RJT |
| Calibration | This product can be calibrated for 5 or 10 point, to maintain the optimum accuracy this product needs to be recalibrated annually. |
