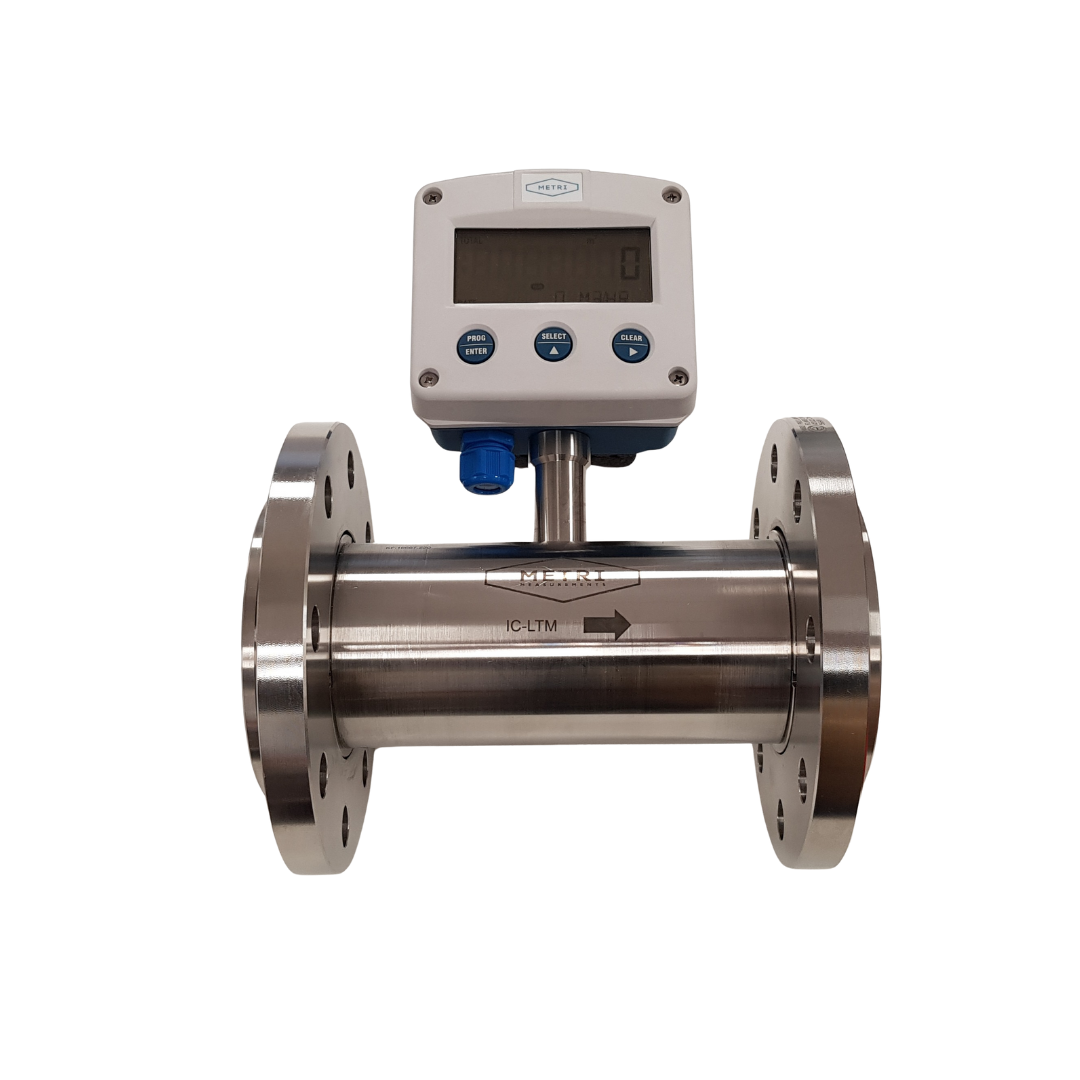

IC-LTM Turbine Flow Meter for Liquids
Metri IC-LTM Turbine Flow Meter is a rugged and accurate flow meter for the volumetric flow measurement of liquids in closed pipe applications.
- Description
- Additional information
- Downloads
Description
Accurate Liquid Flow Rate Measurement with IC-LTM
Discover Precision with the IC-LTM Turbine Flow Meter
The IC-LTM Turbine Flow Meter is an advanced, industrial in-line turbine flow meter that delivers precise and dependable measurement in a wide range of extreme pressure and temperature conditions. Whether for liquid or gas applications, this turbine flow meter is engineered for accuracy, making it the go-to solution for industries that demand high-performance flow measurement. Features of the Metri IC-LTM Turbine Flow Meter include:
- High accuracy measurement with excellent linearity & repeatability
- Versatile, adaptable design with custom connection options
- High pressure rating up to 1000 bar (higher ranges possible)
- Wide range of temperature options –200°C + 350°C
- Selection of flow instruments & displays for compact or remote installation.
- Choice of outputs including pulse, 4-20 mA, Modbus, HART
- Low to medium viscosity liquids
- Rotors machines from Solid material (Choice of materials)
- Choice of Bearings material
Versatile Configuration for Diverse Applications
Designed to meet the needs of various industrial applications, the IC-LTM Turbine Flow Meter offers a versatile configuration that adapts to your specific requirements. Available in sizes ranging from DN6 to DN150, this turbine flow meter ensures compatibility with a broad spectrum of piping systems.
- High Accuracy and Reliability: With excellent linearity and repeatability, the IC-LTM Turbine Flow Meter provides precise measurements that you can rely on.
- Custom Connection Options: Tailor the meter to your system with a variety of connection choices, ensuring seamless integration into your existing setup.
- High Pressure and Temperature Capabilities: Operates under extreme conditions with pressure ratings up to 1000 bar and temperature ranges from -200°C to +350°C.
Ideal for Both Compact and Remote Installations
The IC-LTM Turbine Flow Meter is designed for flexibility, allowing for either compact or remote installations. This adaptability makes it a suitable choice for various industrial environments, ensuring that you have the right solution for your specific needs.
Comprehensive Output Options for Easy Integration
Offering a range of output options, the IC-LTM Turbine Flow Meter integrates effortlessly with your control systems. Choose from coil, pulse, 4-20 mA, Modbus, or HART outputs to match your monitoring and data collection requirements.
The Technology Behind Turbine Flow Meters
Turbine flow meters, such as the IC-LTM, operate on a simple yet effective principle: fluid passes through the meter, causing a rotor with blades to spin. The rotor’s speed is proportional to the flow rate, and this motion is detected by an electronic pickup that generates signals for measurement.
- Wide Flow Range: Capable of measuring low to high flow rates with a turndown ratio of 100:1.
- Economic and Accurate: Delivers reliable flow measurement at a competitive price point, making it a cost-effective solution for many industries.
- Durable Construction: Built to last with robust materials that withstand demanding environments, ensuring long-term performance.
Compatible Display Options for Enhanced Monitoring

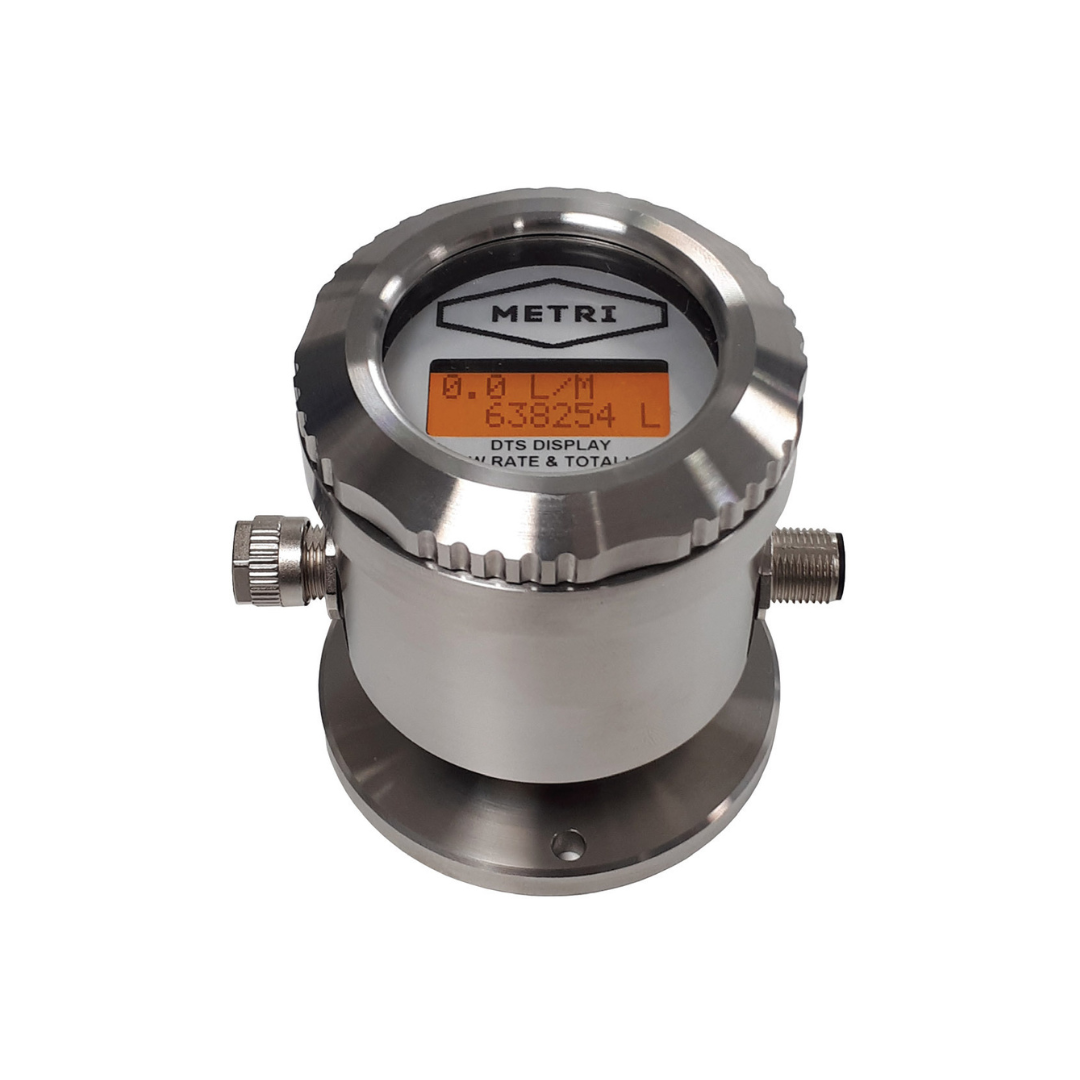

Pair the IC-LTM Turbine Flowmeter with compatible displays to enhance your monitoring capabilities:
- Metri FMS: Provides flow rate, totalizer, 4-20mA output, and alarm functionality.
- Fluidwell F012 and F110: Field mount indicators and totalizers, offering both standard and analog output options for comprehensive data visualization.
Why Choose the IC-LTM Turbine Flow Meter?
When selecting a turbine flowmeter for your application, the IC-LTM offers several advantages:
- Wide Range of Sizes: From DN6 to DN150, the IC-LTM meets the needs of various flow rates and pipe diameters.
- High Pressure and Temperature Tolerance: Capable of operating in extreme environments, making it suitable for challenging industrial applications.
- Easy to Install and Maintain: The simple design and flexible installation options ensure that the IC-LTM is both user-friendly and cost-effective in the long term.
Limitations of Turbine Flow Meters
While turbine flow meters like the IC-LTM offer many benefits, it’s essential to consider their limitations:
- Requires Clean Fluids: Best suited for non-corrosive, clean liquids and gases to prevent damage and maintain accuracy.
- Sensitive to Flow Profiles: Requires a straight pipe run before and after the meter to ensure consistent fluid velocity for accurate readings.
Optimize Your Flow Measurement with the IC-LTM Turbine Flow Meter
The IC-LTM Turbine Flowmeters stand out as a reliable, accurate, and versatile solution for industries requiring precise flow measurement. With its robust design, wide range of configurations, and high-performance capabilities, it’s an investment in accuracy and efficiency for your operations.
Choose the IC-LTM Turbine Flow Meter for your flow measurement needs and experience the difference in performance and reliability.
Additional information
| Pipe Size | DN6 – DN150 / 0.125 – 6″ (other sizes on request) |
|---|---|
| Material Body | Stainless steel (other materials on request) |
| Flow Range | 0.028 – 550 m³/hr |
| Accuracy | 0.25 % R.D. |
| Operating Temp Range | -200 to 350ᵒC |
| Pressure Range | Up to 1000 bar |
| Outputs & Comms | Variable reluctance coil only (mV), pulse/analogue output |
| Insertion / Inline | Inline |
| Applicable Liquids | Clean water, chemicals, hydrocarbons, mineral oils, alcohol |
| Power | Battery -24vd 110-240 VAC |
| Approvals | CE, ATEX EEx ia Ex d, PED |
| Connection Type | BSP, NPT, flanged autoclave, RJT, Tri-clamp |
| Calibration | Calibrated as per UKAS standards. This product can be calibrated for 5 or 10 point, to maintain the optimum accuracy this product needs to be recalibrated annually. |
