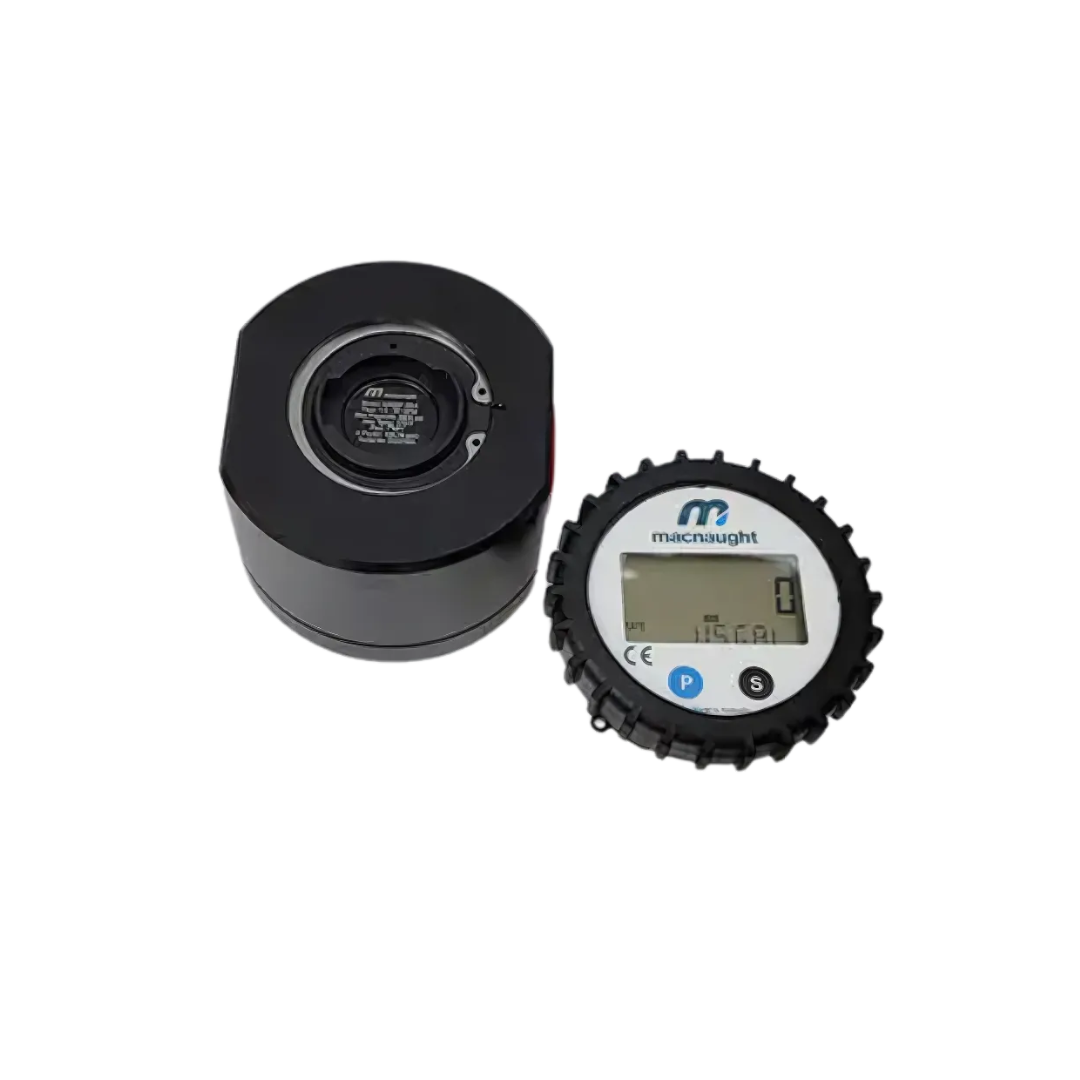

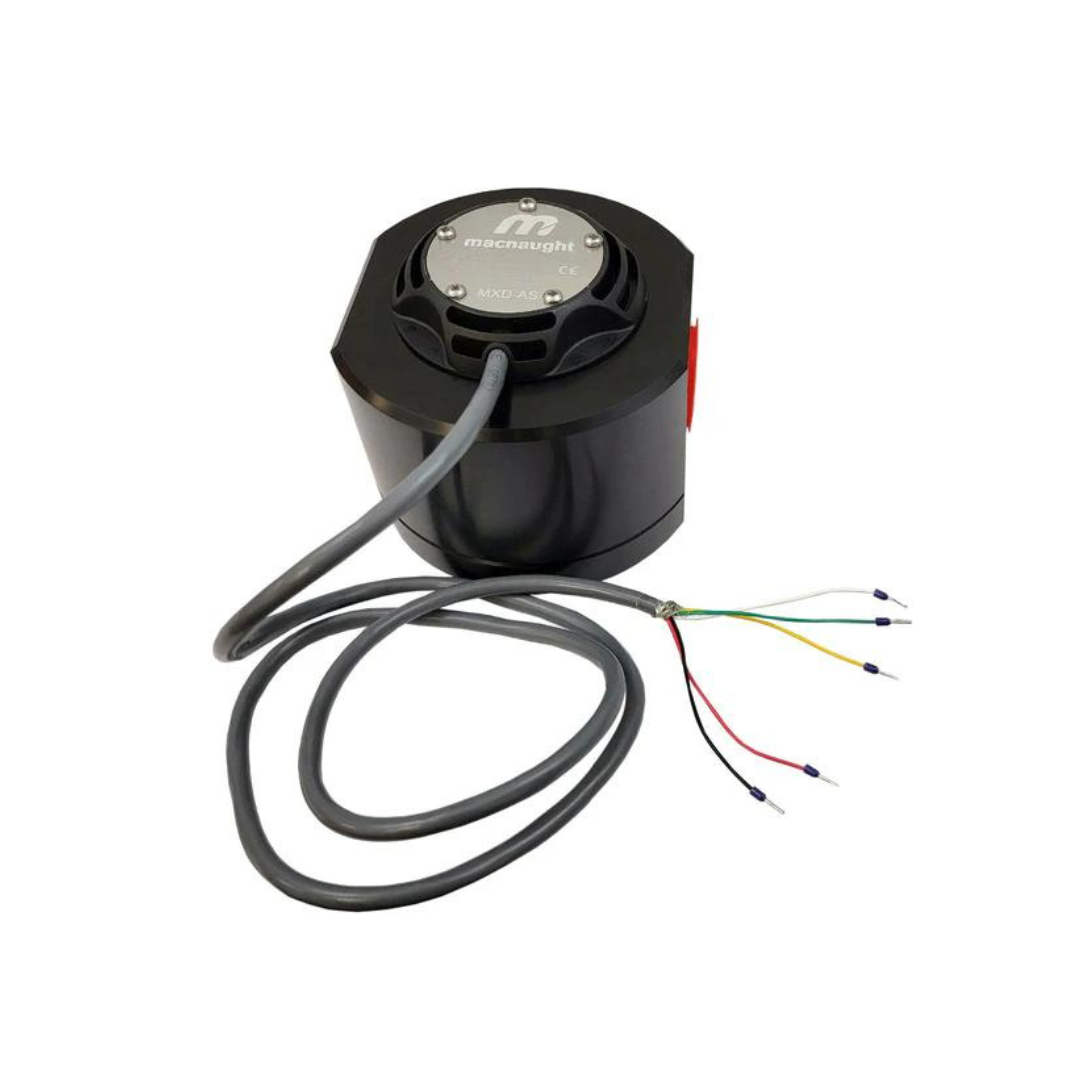

Macnaught MX Oval Gear Flow Meters
Macnaught MX Oval Gear Flow Meters are Accurate Positive Displacement Flowmeters for fuels, oils, solvents, and all clean viscous and non-viscous fluids.
- Description
- Meter Sizing
- Downloads
Description
Accurate Industrial-Grade Flow Measurement
Seztec’s MX Oval Gear Flow Meters are designed for high-precision, reliable measurement of clean fluids. Built for industrial-grade applications, our positive displacement flow meters offer true volumetric measurement, capturing the exact flow of liquids through the meter. From low to high flow ranges, our MX meters ensure you get an unparalleled level of accuracy and repeatability, making them the perfect solution for a broad range of industries.
Key Features of MX Oval Gear Flow Meters:
- Solid Billet Construction: MX Meter bodies are machined from durable solid billet for rugged performance.
- Precision Rotor Shafts: Hardened alloy shafts provide superior durability, contributing to long-term reliability.
- Unmatched Accuracy & Repeatability: ±0.5% standard accuracy and ±0.03% repeatability ensure precise and consistent readings.
- Wide Range of Flow Capabilities: With sizes ranging from ¼” to 4”, our meters handle flow rates from as low as 0.13 GPH to over 320 GPM.
- Clean Fluids Only: Suitable for clean process fluids without gases or solids, ensuring optimal performance.
- Flexible Installation: No flow conditioning required, so you can install the MX meter where it is most convenient for your application.
- Comprehensive Stock: We maintain a large inventory of meters and displays, including those classified for hazardous environments.
Get Immediate Flow Meter Support: Need an MX oval gear flow meter right away? Our team responds promptly to inquiries, and you can receive a proposal within minutes.
Call our Meter Hotline at (832) 899-4040 for direct assistance.
Applications & Fluid Compatibility
Fluids Suited for MX Oval Gear Flow Meters
MX Oval Gear Flow Meters offer exceptional performance across a wide variety of fluid categories:
- Fuels, Oils, Solvents
- DEF/ADBLUE, Greases, Lubricants
- Fuel Additives, Glycols, Polyols
- Isocyanates, Asphalt Emulsions, Sealers
- Epoxies, Adhesives, DI Water
- General Water, Acids, Bases
- Inks, Chemical Additives
- All Clean Process Fluids
Industries & Application Scenarios
MX Flow Meters excel in diverse industrial applications requiring accurate flow measurement and blending. Key applications include:
- Fuel & Oil Measurement: From basic to advanced measurement of fuel additives, heating oils, and bunker vessel fuel.
- Blending & Dispensing: Agriculture chemicals, bio-diesel production, lubricants, hydraulic fluids, and polyurethane foam ratio blending.
- Water & Chemical Measurement: DI and general water loops, solvent manufacturing, acids, and bases handling.
- Manufacturing & Process Control: Solvents, adhesives, polymers, epoxies, coatings, sealants, and high-viscosity fluid processing.
Whether you’re managing flow rates for chemical additives, monitoring marine fuel, or handling agricultural blending, the MX Oval Gear Flow Meter provides a versatile, reliable solution for your process needs.
How MX Oval Gear Flow Meters Work – Precision in Every Revolution
At the core of the MX Oval Gear Flow Meters are two meticulously engineered oval-shaped gears, or Rotors, that make these meters exceptionally accurate and reliable for clean fluid measurement. Designed for precision, these high-precision splined Rotors rotate in tandem, meshing together seamlessly as fluid flows through the meter.
The Precision of Oval Gear Technology
As fluid enters the flow meter, the movement of the liquid drives the Rotors. Each rotation of the Rotors displaces a defined, exact volume of fluid, ensuring a highly accurate measurement. As the flow rate increases, so does the rotational speed of the Rotors, maintaining the accuracy and reliability of the volume measured. This positive displacement mechanism guarantees precise volumetric flow measurement, unaffected by changes in viscosity, pressure, or temperature.
Pulse Detection for Exact Volume Tracking
Every “active” rotation of the Rotors generates a pulse, which is detected by a highly responsive sensor. This pulse signal correlates directly to the volume of fluid that has passed through the meter, offering a precise, real-time measure of flow. The entire system is designed for optimal accuracy and repeatability, making it suitable for various industrial processes.
Each MX Flow Meter undergoes individual calibration according to ISO 17025 standards, ensuring ±0.5% accuracy and ±0.03% repeatability in performance. This commitment to precise calibration means that every meter you receive is finely tuned to deliver consistent, reliable results, regardless of the fluid’s characteristics.
Experience Seamless Fluid Measurement with MX Oval Gear Flow Meters
When precision and performance matter, trust the MX series to deliver accurate flow measurements. Whether it’s managing clean fuels, lubricants, or water, Seztec’s MX Oval Gear Flow Meters are engineered to provide reliable, repeatable, and precise results for all your fluid measurement needs.
For more information or to receive an immediate proposal, reach out to our expert team today at (832) 899-4040 or explore our complete product range on our website.
| Model | Size | Flow Range | Max Pressure |
Max Temp PPS Rotors |
Max Temp Peek /SS Rotors *Remote display only |
| MX06 | ¼” | 0.13-26 GPH | 1,000 PSI | 176F | 248F SS Only |
| MX09 | ¼” | 4-262 GPH | 1,000 PSI | 176F | 248F SS Only |
| MX12 | ½” | 0.5-12 GPM | 2,000 PSI | 176F | 248F SS Only |
| MX19 | ¾” | 0.8-21 GPM | 2,000 PSI | 176F | 248F SS or PEEK |
| MX25 | 1” | 1.6-42 GPM | 2,000 PSI | 176F | 248F SS or PEEK |
| MX40 | 1.5” | 2.6-92 GPM | 1,500 PSI | 176F | 248F SS or PEEK |
| MX50 | 2” | 4-200 GPM | 1,200 PSI | 176F | 248F SS or PEEK |
| MX75 | 3” | 5-317 GPM | 175 PSI | 248F | 248F AL Only |
| MX100 | 4” | 31.7-600 GPM | 175 PSI | 248F | 248F AL Only |
MX Meter Instruction Manual > Download PDF
PR Integral or Remote Mount Display with Rate & Total Only – no outputs > Download PDF
PRA Integral or Remote Mount Display with Rate and Total with 4-20mA, Pulse and Flow Alarm ( Hi-Low ) outputs > Download PDF
B-Smart Remote Display accepts all Macnaught Pulse Outputs > Data Sheet Download PDF
B-Smart Remote Display > Instruction Manual PDF
PRM Integral of Remote Mount Display 4-20mA only – no rate or total values > Download PDF
Pulser Output Options > Download PDF
