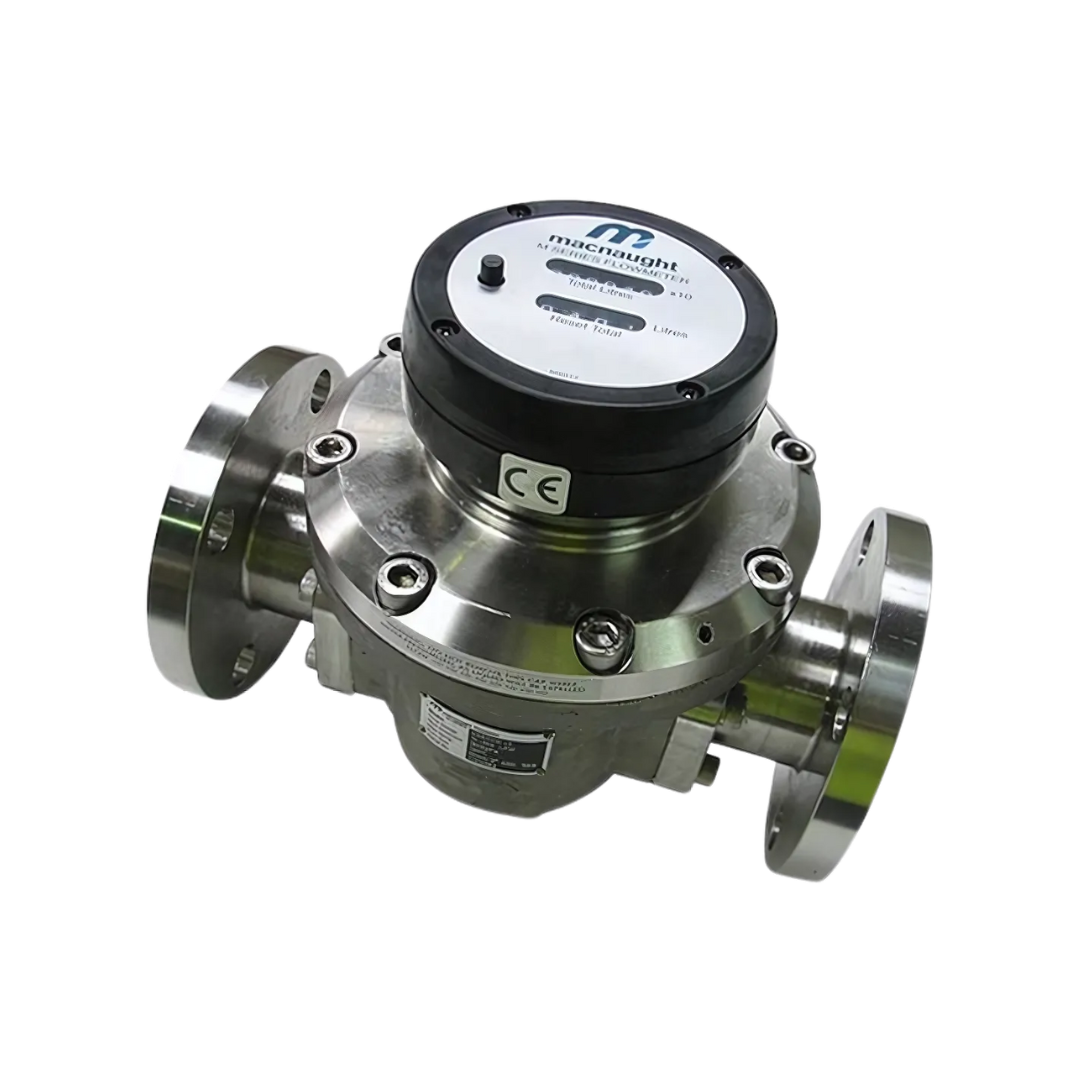

Macnaught M Series Mechanical Register Totalizer Flow Meter

Description

Reliable and Accurate Totalizer Flow Meter for Clean Fluids

Introducing the Macnaught M Series Mechanical Register Totalizer Flow Meter, your go-to solution for precise, non-powered flow totalization. Engineered for industrial applications, these robust flow meters are designed to provide consistent, long-lasting performance in a variety of clean fluid processes. With decades of proven reliability and accuracy, the Macnaught M Series meters have become trusted companions in industries ranging from fuels to chemical manufacturing.

Unmatched Accuracy & Dependability

Every Macnaught M Series totalizer flow meter is built to deliver an impressive 1% accuracy with 0.03% repeatability, ensuring precise volumetric measurement of clean fluids. Their mechanical display provides a clear, easy-to-read totalization of fluid flow without the need for power, making them ideal for a wide range of environments and applications. Many units have been in service for over 30 years, showcasing their durability and dependability.

Versatile & Easy to Install Totalizer Flow Meter

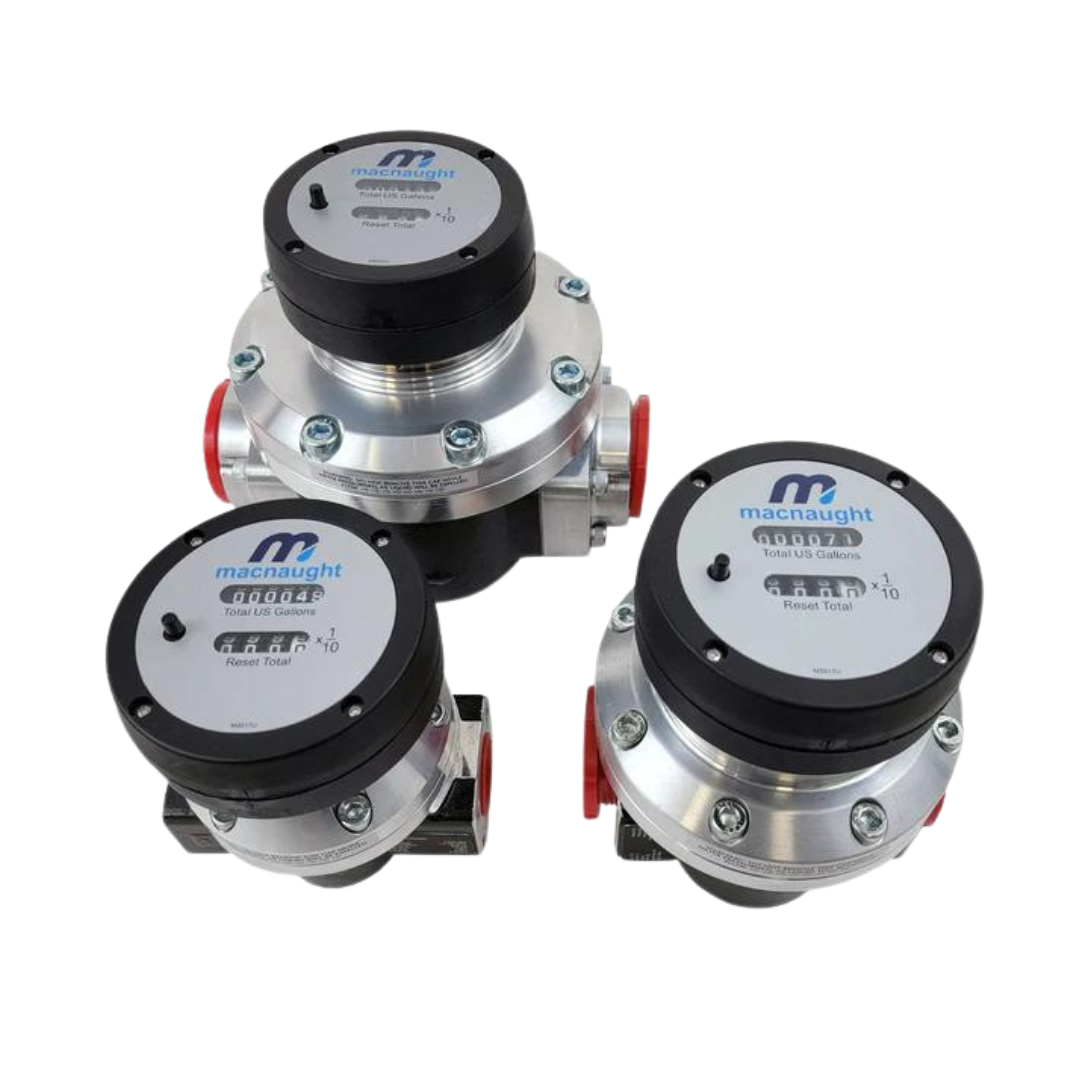

The Macnaught M Series comes in ½”, 1”, 1.5”, and 2” sizes, ready to integrate into your existing system with FNPT stock connections and optional flanges for larger models. The meters require no flow conditioning, so you have the flexibility to install them exactly where you need them without worrying about specific pipeline arrangements. With their compact size and industrial-grade design, these flow meters can be quickly and easily set up for immediate use.

Stock & Availability

Our large inventory of meters and display units includes options for hazardous environments, ensuring that you find the right meter for your specific needs. Our dedicated team is ready to respond to any flow meter inquiries promptly. Reach out to us for an immediate quote or call our Flow Meter Hotline at (832) 899-4040 for personalized support.

---

M Series Totalizer Flow Meter for a Wide Range of Fluid Applications

The Macnaught M Series is built to handle a broad array of clean process fluids, including:

• Fuels & Oils: Diesel, gasoline, biodiesel blends
• Lubricants & Greases
• Solvents, DEF/AdBlue, & Additives
• Glycols, Polyols, & Isocyanates
• Asphalt Emulsions, Sealers, Epoxies, & Adhesives
• DI Water, General Water, Acids, & Bases
• Inks, Chemical Additives, & all other clean fluids

Ideal Flow Totalizing Applications

These flow meters are perfect for a wide variety of fluid process applications, such as:

• Bio-Diesel Production & Fuel Blending
• Lubricant Dispensing & Sealants Manufacturing
• Hydraulic Fluid Measurement
• Epoxy, Glue, & Polymer Production
• Heating Oil Monitoring & Boiler Fuel Measurement
• Solvent & Additive Injection
• Agricultural Chemical Dispensing

From basic test stands to complex fuel measurement systems, the Macnaught M Series meters are designed to deliver reliable performance across diverse use cases.

---

Key Features of M Series Totalizer Flow Meter at a Glance

• 1% Accuracy & 0.03% Repeatability: Ensures precise fluid measurements for totalizing applications.
• Industrial-Grade Durability: Heavy-duty design built to withstand demanding environments.
• Compact & Flexible Installation: No flow conditioning required; install it where it’s most convenient for your process.
• Material & Connection Options: Available in aluminum or stainless steel; stock FNPT connections with flange options for larger sizes.

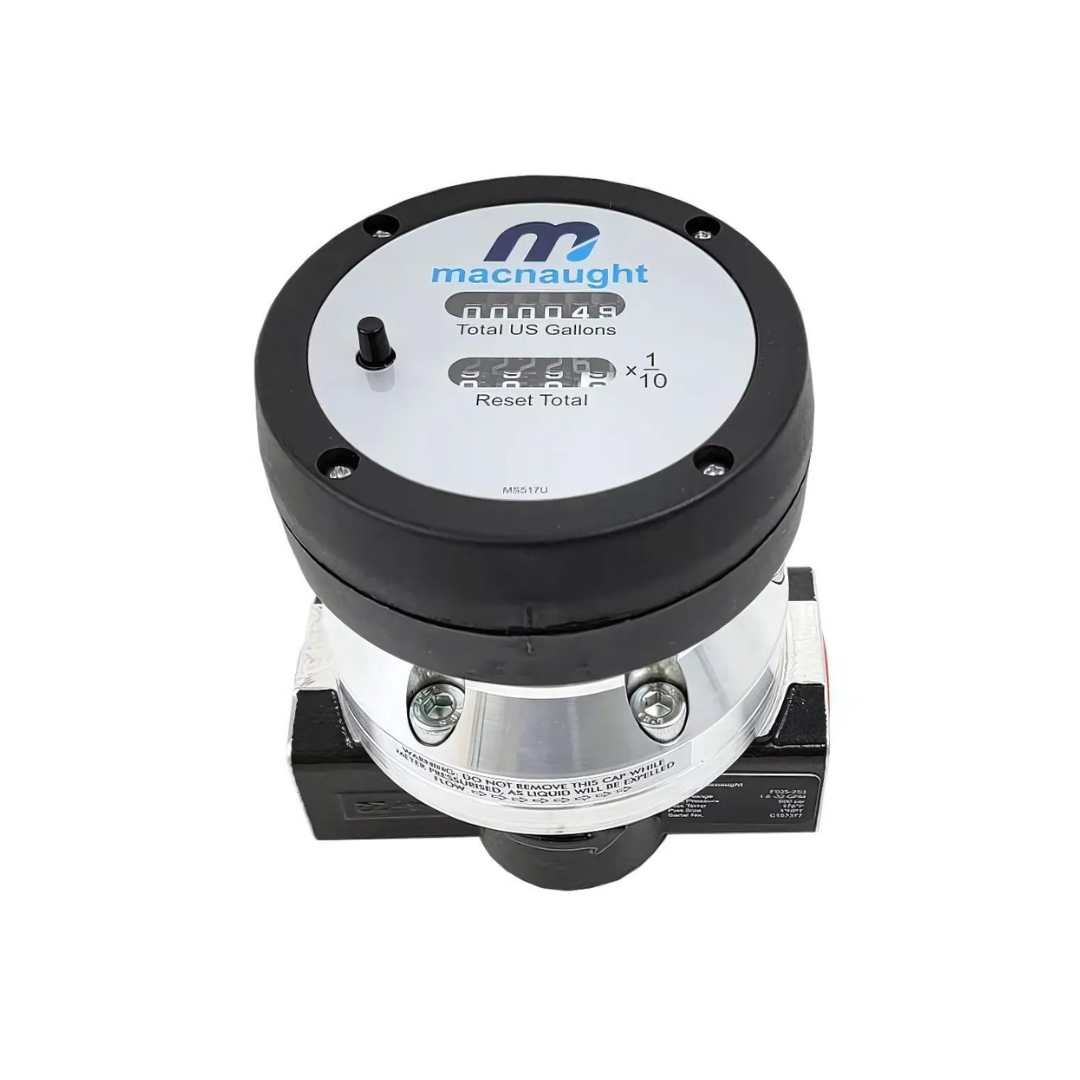

• Standard Mechanical Display: Clear, mechanical readout for straightforward monitoring of flow totals.
• Temperature Limit: Suitable for fluids up to 176°F (80°C).
• Versatile Viscosity Compatibility: Designed to handle low and high-viscosity fluids with ease.

---

How M Series Totalizer Flow Meter Works

At the core of the MX Oval Gear Flow Meters are two meticulously engineered oval-shaped gears, or Rotors, that make these meters exceptionally accurate and reliable for clean fluid measurement. Designed for precision, these high-precision splined Rotors rotate in tandem, meshing together seamlessly as fluid flows through the meter.





The Precision of Oval Gear Technology

As fluid enters the flow meter, the movement of the liquid drives the Rotors. Each rotation of the Rotors displaces a defined, exact volume of fluid, ensuring a highly accurate measurement. As the flow rate increases, so does the rotational speed of the Rotors, maintaining the accuracy and reliability of the volume measured. This positive displacement mechanism guarantees precise volumetric flow measurement, unaffected by changes in viscosity, pressure, or temperature.





Pulse Detection for Exact Volume Tracking

Every “active” rotation of the Rotors generates a pulse, which is detected by a highly responsive sensor. This pulse signal correlates directly to the volume of fluid that has passed through the meter, offering a precise, real-time measure of flow. The entire system is designed for optimal accuracy and repeatability, making it suitable for various industrial processes.

Each M Series Flow Meter undergoes individual calibration according to ISO 17025 standards, ensuring ±1% accuracy and ±0.03% repeatability in performance. This commitment to precise calibration means that every meter you receive is finely tuned to deliver consistent, reliable results, regardless of the fluid’s characteristics.

---

Request a Quote Today

Take control of your fluid totalization with the Macnaught M Series Mechanical Register Flow Meters. Request a quote now or call our Flow Meter Hotline at (832) 899-4040 to speak with an expert.

---

Upgrade your fluid measurement process with the Macnaught M Series – where precision meets reliability for all your clean fluid flow totalization needs.

Macnaught MX Ex ia Quick Specifications:

Mechanical Meter Downloads

Macnaught ½” Mechanical Register Manual > Download PDF

Macnaught 1” Mechanical Register Manual > Download PDF

Macnaught 1.5” Mechanical Register Manual > Download PDF

Macnaught 2” Mechanical Register Manual > Download PDF
