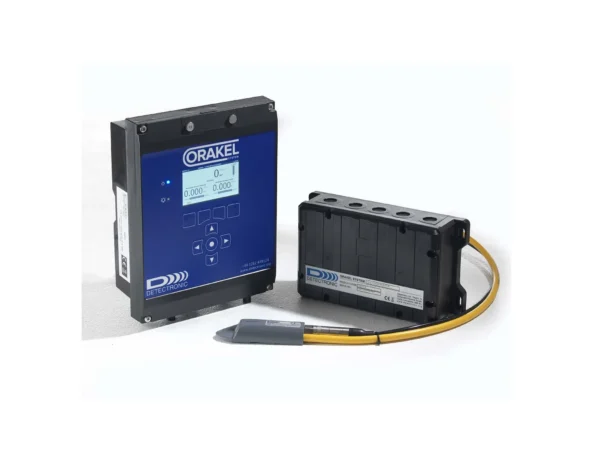

ORAKEL Area Velocity Flow Meter
The ORAKEL Submerged AV (Area Velocity) Flow meter uses a robust, doppler velocity sensor that uses ultrasonic technology to measure wastewater flow with improved accuracy and reliability.
- Description
- Additional information
- Downloads
- Benefits
Description
Welcome to the future of flow measurement with the Seztec ORAKEL Area Velocity Flow Meter!
Looking for an open channel flow meter that delivers unparalleled accuracy and reliability? Look no further than the ORAKEL Submerged Area Velocity (AV) Flow Sensor. Our cutting-edge doppler velocity sensor harnesses ultrasonic technology to provide you with precise wastewater flow measurements, setting the industry standard for accuracy and reliability.
Unmatched Precision for Open Channel Flow Measurement
Installed right within the open channel, our sensor employs ultrasound waves to swiftly gauge liquid flow velocity while also utilizing pressure sensing technology to determine depth. By integrating pre-configured dimensions of the pipe or channel, we calculate the overall volume of flow with precision. Plus, a built-in temperature sensor guarantees even greater measurement accuracy.
Versatility at Its Best
The ORAKEL Flow Sensor is designed to measure the volumetric flow of raw sewage, industrial effluents, and storm waters. Its rugged construction allows it to thrive in open channels, combined sewers, and storm sewer pipes. Thanks to its velocity profiled sensor, the risk of fouling and ragging is significantly reduced.
Key Features of the ORAKEL Area Velocity Flow Meter:
- Market-leading accuracy
- Resistance to fouling and corrosion
- Cost-effective, requiring minimal maintenance
- Versatile sensor installation – easy to position in the channel
- The ORAKEL control unit can monitor up to 15 additional sensors
Technical Specifications
- Velocity Sensor: Ranging from 0.03m/s to 4.00m/s with a remarkable accuracy of ±2.5% FS.
- Depth Sensor: Covering a range of 0.0m to 6.0m with an impressive accuracy of ±0.2% FS.
- Environmental: IP68 sensor module protection, operating temperature from -20°C to +60°C.
- Performance and Approvals: CE approved for top-notch performance.
Discover the ORAKEL System
Our ORAKEL System doesn’t just stop at sensors; it’s a comprehensive solution for all your fluid measurement needs. With two high-spec control units, on-screen graphing, easy navigation, secure website viewing, and multiple output options, the ORAKEL System provides unmatched versatility.
Get in Touch and Elevate Your Flow Measurement Game
Are you ready to take your flow measurement capabilities to the next level? Contact us today to learn more about the Seztec ORAKEL System and how it can benefit your business. We’re here to provide you with the most advanced, reliable, and accurate open channel flow meter technology.
Call us at +1 (816) 204 0808, email us at sales@seztec.com to explore the future of fluid measurement with the Seztec ORAKEL System.
The ORAKEL System – Revolutionizing Fluid Measurement for a Brighter Tomorrow.
Additional information
| Meter Type | Area Velocity Flow Meter (AVFM) |
|---|---|
| Application | Open Channel Flow Measurement |
| Sensors | Velocity Sensor, Depth Sensor, Integrated Temperature Sensor |
| Sensor Channel | Connects up to 2 sensors as standard; expandable up to 16 sensors |
| Flow Velocity range | 0.03m/s to 4.00m/s (resolution 1mm/s) |
| Velocity Sensor Linearity | ±1% |
| Velocity Sensor Accuracy | ±2.5% FS |
| Range | 0.0m to 6.0m |
| Depth Sensor Linearity | 0.1% BSL |
| Depth Sensor Accuracy | ±0.2% FS |
| Outputs | 4-20mA and Modbus outputs available |
| Operating Temperature | -20°C to +60°C |
| Approvals | CE approved |
› Market-leading accuracy
› Resists fouling and corrosion
› Cost effective, requiring little maintenance
› Versatile sensor installation – easy to place in the channel
› The ORAKEL control unit allows up to 15 additional sensors to be included
