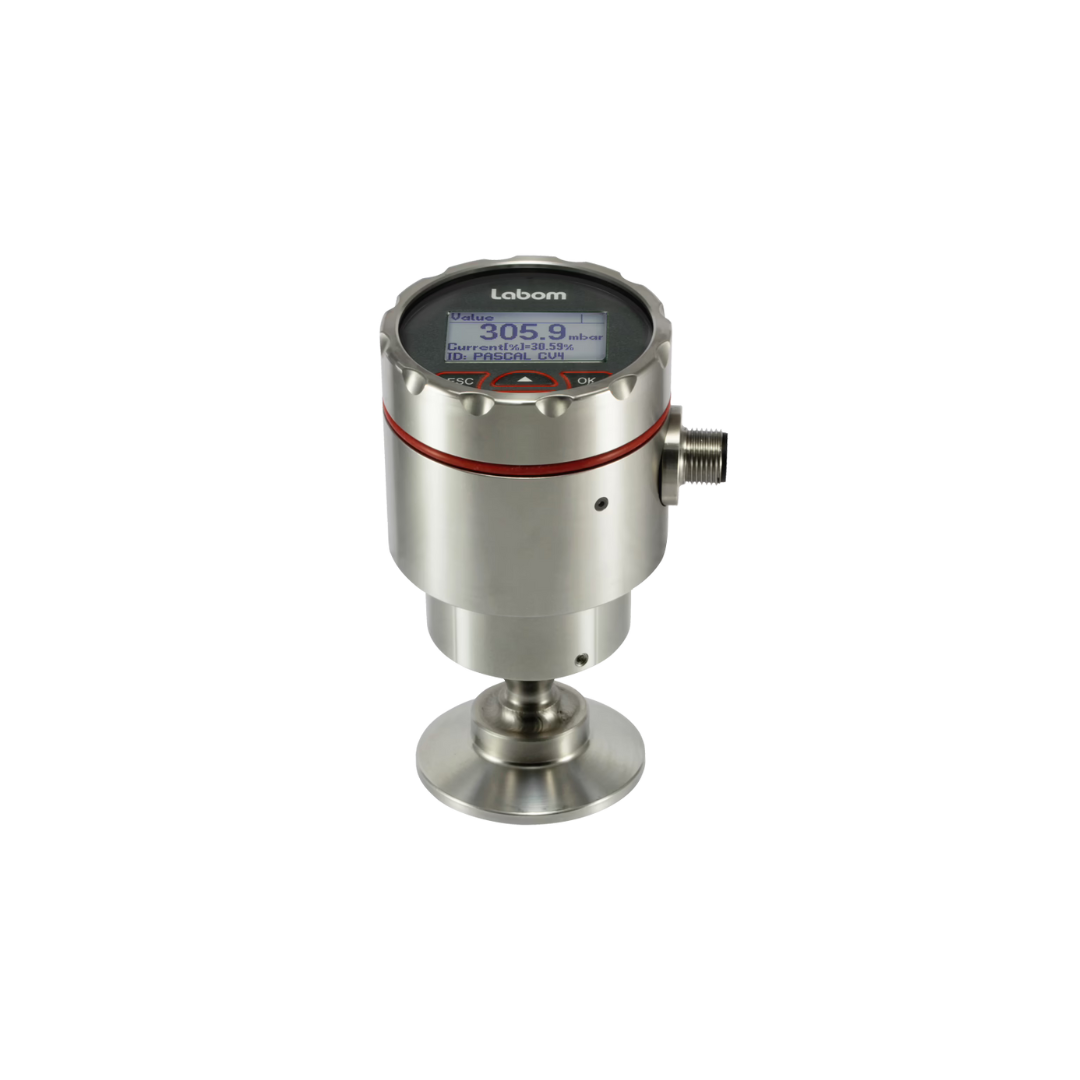

Introducing the PASCAL CV4 Pressure Transmitter by Seztec USA

Overview:

Seztec USA presents the PASCAL CV4 pressure transmitter, meticulously designed to meet the stringent requirements of the water and wastewater, pharmaceutical, food, biotechnology, and general process technology industries. With its compact stainless steel case, hygienic design, and advanced features, it’s the ultimate solution for precise pressure measurement in demanding environments.

Applications:

The PASCAL CV4 pressure transmitter is engineered for measuring both relative and absolute pressures of gases, vapors, and liquids. Its design and various process connections make it particularly suited for applications requiring strict adherence to hygienic standards, such as those found in water and wastewater industry.

Typical water and wastewater applications include:

Key Features:

• Hygienic Design: Featuring a compact stainless steel case designed according to recommendations from EHEDG and 3A, with IP65/67 protection, ensuring cleanliness and durability.
• Precision Accuracy: With an accuracy of ≤ 0.15%, the PASCAL CV4 delivers reliable and consistent pressure measurements.
• High-Resolution Graphic Display: Equipped with an intuitive operation, backlight, and high-resolution display for easy configuration and monitoring.
• Quick Access to Device Data: Provides convenient access to critical device information for efficient operation.
• Comprehensive Parameterization: Offers versatile functionality for customization to specific application requirements, including simulation and diagnostic functions.
• Wide Pressure Range: Nominal range from 0.25 bar to 100 bar, with a turndown ratio of up to 20:1, accommodating a variety of pressure levels.
• Output Signal Options: Offers a 4…20 mA output signal with HART® protocol for seamless integration with control systems.
• Digital Communication: Supports communication via PDM/EDD and FDT/DTM for enhanced connectivity.
• Output Functions: Includes linear and inverse output functions, as well as a table function with up to 32 support points for versatility.
• Hygienic Process Connections: Various hygienic process connections, with selected options certified by EHEDG, ensuring compatibility with industry standards.
• Wetted Parts: Stainless steel construction with electropolished wetted parts ensures compatibility with various media types and enhances cleanliness.

Options and Additional Features:

• Labom REconnect Quick Coupling: Facilitates easy and safe separation and connection of diaphragm seal systems, enhancing efficiency.
• Enhanced Accuracy: Option for accuracy of ≤ 0.1% for applications requiring higher precision.
• Certifications and Approvals: Includes explosion protection certifications, UL 61010-1 and CAN/CSA-C22.2 no. 61010-1, as well as material and calibration certificates per EN 10204-3.1, ensuring compliance with safety and quality standards.
• Compliance: Configurable to meet UKCA regulations, ensuring adherence to regulatory standards.
• High Degree of Protection: IP69K protection rating ensures durability and reliability in harsh environments.
• Stainless Steel Construction: Case and front cover made of stainless steel 316L for enhanced durability and corrosion resistance.

The PASCAL CV4 pressure transmitter from Seztec USA sets the standard for precision, reliability, and hygiene in pressure measurement applications. Trust in Seztec USA’s commitment to quality and innovation for your pressure sensing needs.

DB_D4-016-7_en (CV4110) PASCAL CV4
