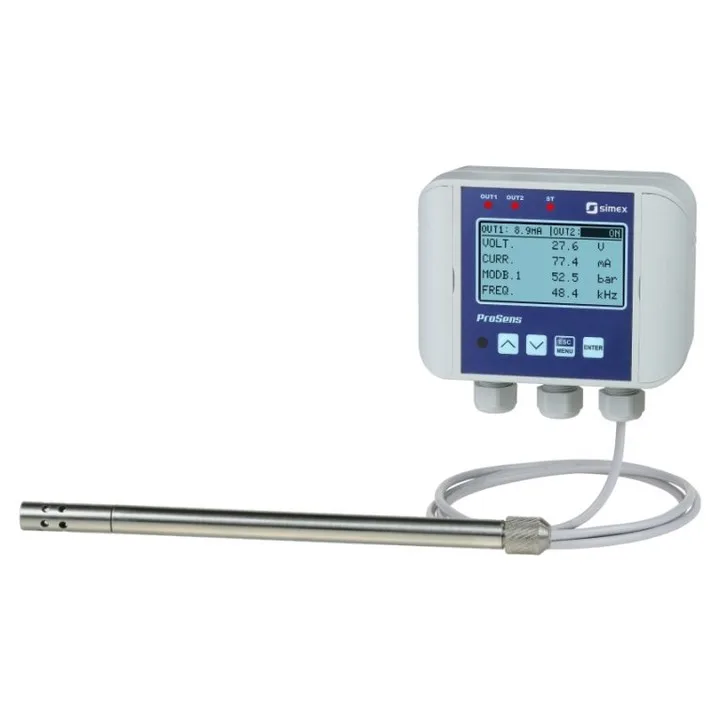

ProSens QM-622 Air Duct Sensor
- Description
- Specification
- Downloads
Description
ProSens introduces a cutting-edge line of modern industrial instruments seamlessly integrating sensor, converter, meter, and controller functionalities. Leveraging state-of-the-art miniaturization technologies, these compact instruments boast the capability to accommodate one independent universal input, two binary, or two analog outputs, alongside a communication port RS-485 equipped with Modbus protocol.
Model QM-622: Precision in Temperature and Humidity Monitoring
- Probe Specifications:
- Temperature or temperature and humidity cable probe.
- Ø12 mm, L=300 mm.
- Stainless steel 316L probe and filter cap.
- Functional Highlights:
- Large built-in display for enhanced visibility.
- Output signals that make the ProSens line units versatile in control systems.
- Applicability as a stand-alone controller in various industrial applications.
- Seamless cooperation with master devices via the Modbus protocol, facilitating integration into extensive networks for distributed monitoring systems.
The ProSens line, epitomized by Model QM-622, transcends traditional industrial instrumentation, offering precision, versatility, and seamless integration into both standalone and networked control systems. Embracing the latest technological advancements, ProSens redefines the landscape of industrial monitoring and control.
Ordering Code: QM-622-05-1-3-0-44-1-10-3-2
| Type of probe |
cable probe L=300 mm, Ø 12 mm, stainless steel 316L probe and filter cap
|
| Probe parameters |
temperature: -50…120°C (typ. error ±0.5°C @ -10…+80°C)
temperature and humidity: temperature measuring range: -40…120°C (typ. error ±0.2°C @ 10…60°C; 0.4°C @ -30°C; 0.7°C @ 120°C); humidity measuring range: 0…100% RH (typ. error ±1.8% RH; 20…80% @ 25°C
|
| Input type |
universal
|
| Input range |
0/4…20 mA
0…60 mV, 0…75 mV, 0…100 mV, 0…150 mV
0/1…5V, 0/2…10V
Pt100, Pt500, Pt1000: -100…+600°C
TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C
|
| Output type |
depends on configuration:
electronic relay NO, 24V AC/35V DC, max. 200 mA
0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit
4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit
0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit
|
| Power supply |
11…36V DC
16…36V DC (0…10V out.)
|
| Display |
no display
LCD, 128 x 64 pixels, graphic, with backlight
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
1200…115200 bit/s, 8N1 i 8N2, bez kontroli parzystoÅ›ci
|
| Operating temperature |
-30…+80°C, case with electronics
|
| Protection class |
IP 65
IP 67
|
| Case material |
polycarbonate
ASA LURAN
|
| Mounting |
wall
|
| Case dimensions |
120 x 90 x 50 mm
|
