Description

Introducing the SONO-MIX LD Woodchip Moisture Meter

Precision and Reliability for Your Bulk Material Needs

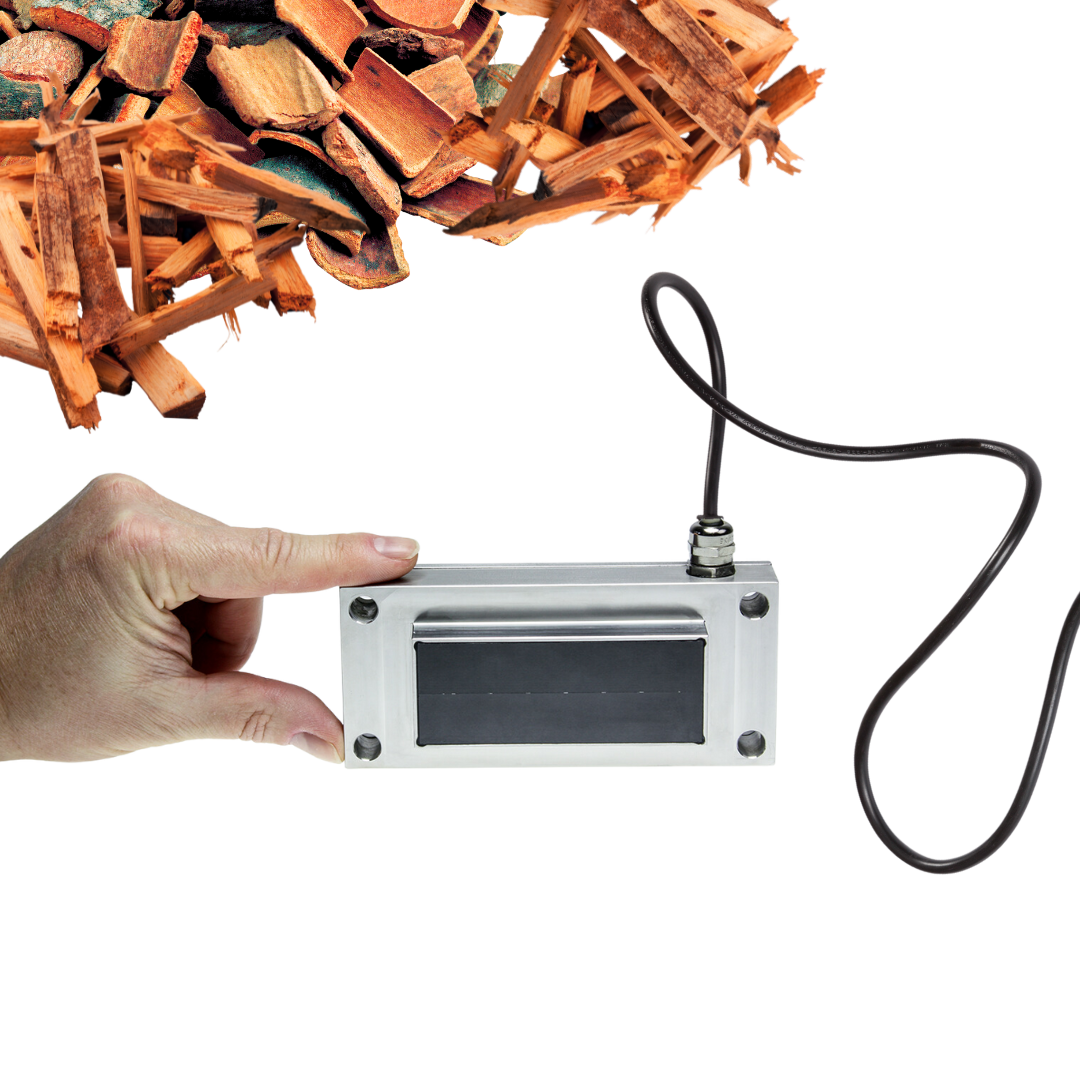

Introducing the SONO-MIX LD Wood Chip Moisture Analyzer, the ultimate in-line or process moisture probe designed with a compact size for tight places. Perfectly suited for moisture measurements of heterogeneous bulk goods with low-density materials, the SONO-MIX LD excels with materials such as wood chips, sawdust, granulates, pellets, pasta, and other similar substances with relatively larger grain sizes.





Versatile Installation for Seamless Integration

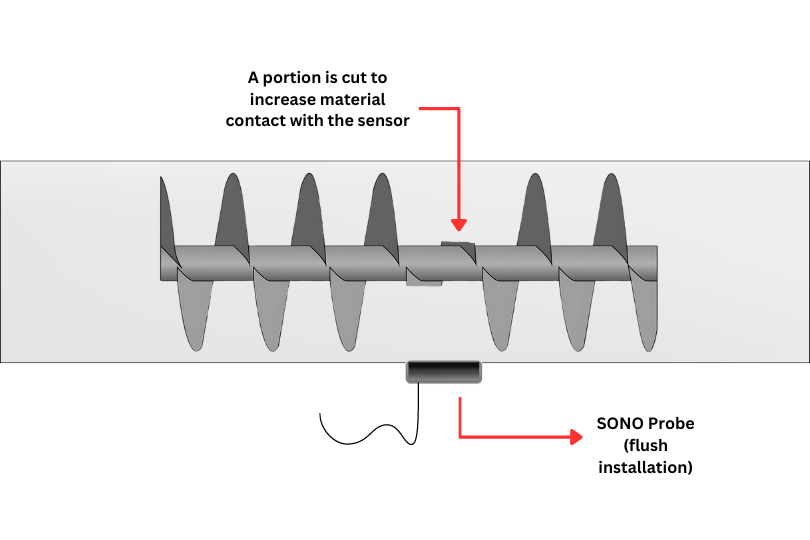

The SONO-MIX LD is engineered for versatility and can be seamlessly installed in containers, dryers, process lines, screw conveyors, hoppers, and silos. For optimal performance, we recommend installation in screw conveyors where material density remains relatively constant.

Cutting-Edge TRIME® TDR Technology

Our SONO moisture probes harness the power of patented TRIME® TDR technology. This advanced technology penetrates deep into large volumes of material, providing you with highly accurate and repeatable moisture measurement values. With over 20 years of expertise, Seztec’s moisture probes are designed to meet all your woodchip moisture measurement needs.





SONO Wood Chip Moisture Analyzer offers Flexible Interface Options

The SONO moisture probe offers a range of standard industry outputs and communication protocols to meet all your data transfer needs. Key parameters such as moisture content, conductivity, and temperature can be directly transferred into a PLC via two analogue outputs (0(4)…20 mA) or imported via an RS485 and IMP-Bus interface. Additionally, SONO probes can connect directly to a local PC (USB port) using the SM-USB module or the field display – SONO-VIEW. This feature allows customers to adjust individual measuring parameters and perform calibrations with ease.





Major Applications of the SONO Wood Chip Moisture Analyzer

The SONO Wood Chip Moisture Analyzer is ideal for:

• Wood Processing Industry: Sawmills and wood pellet production.
• Bioenergy Production: Biomass power plants.
• Agriculture and Food Processing: Grain and seed storage, and pasta production.
• Construction Materials: Concrete and aggregate production.
• Recycling Industry: Paper and cardboard recycling.
• Chemical and Pharmaceutical Industry: Bulk material handling.
• Animal Feed Production: Feed mills.

Major Benefits

• Easy to Install and Replace: Simplified installation process ensures quick setup and replacement.
• User-Friendly Interface: Intuitive interface for quick commissioning and programming.
• Intelligent Sensor Diagnostics: Advanced diagnostics for efficient troubleshooting.
• Networked Sensors: Support for multiple sensors in a bus configuration for SCADA systems.
• Pre-Programmed Calibrations: 15 standard linear calibrations for various material types, pre-programmed in the sensor.
• Durability: Long service life and low maintenance requirements.
• Replaceable Sensor Head: Designed for easy replacement, ensuring minimal downtime.

Upgrade your moisture measurement process with the SONO-MIX LD Wood Chip Moisture Analyzer and experience unparalleled accuracy, reliability, and ease of use. Discover the difference that cutting-edge technology and expert design can make in your wood chip drying operations.
