Ultrasonic Flow Meter Advantages and Disadvantages
Ultrasonic flow meters have transformed how industries measure flow rates, offering precision and versatility. However, like any technology, they have both strengths and limitations. This guide will provide an in-depth exploration of ultrasonic flow meter advantages and disadvantages, helping you decide if this technology suits your application.
What is an Ultrasonic Flow Meter?
An ultrasonic flow meter measures fluid flow by utilizing sound waves. It can measure both the velocity and direction of flow, often without any contact with the fluid itself. These devices are commonly used in industries like water treatment, oil and gas, and chemical processing.
Ultrasonic Flow Meter Advantages
1. Non-Invasive Installation

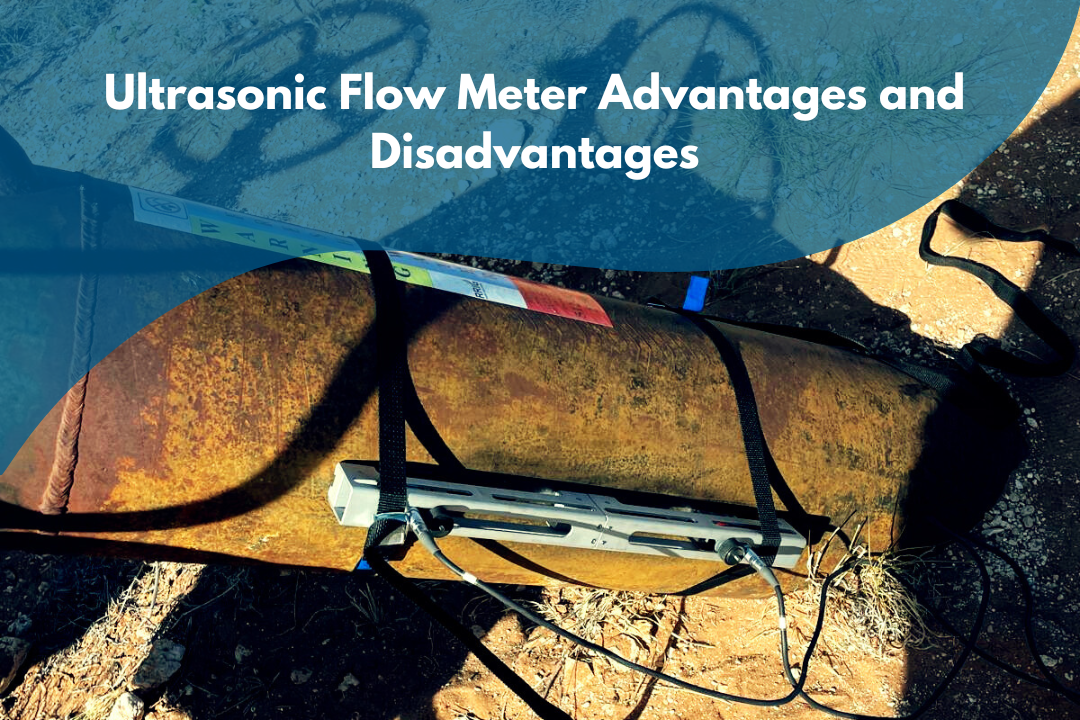

- Clamp-On Models: These attach externally to the pipe, eliminating the need for process shutdowns or pipe modifications.
- Benefit: Cost savings in installation and reduced downtime.
2. High Accuracy and Reliability
- Transit-Time Technology: Provides precise readings for clean liquids.
- Doppler Technology: Ensures accuracy in fluids with bubbles or particulates.
- Benefit: Reliable measurements even in dynamic conditions.
3. Wide Compatibility
- Works with various pipe materials, including metal, plastic, and concrete.
- Suitable for measuring different fluids, from clean water to viscous slurries.
4. Low Maintenance Requirements
- No moving parts mean minimal wear and tear.
- Maintenance costs are lower compared to traditional flow meters like turbine or mechanical meters.
5. Flexible Applications
- Can be used for portable or fixed installations.
- Works for fluids at extreme temperatures or pressures, depending on the model.
6. Environmental Safety
- Non-contact operation reduces the risk of leaks or contamination.
- Ideal for sensitive applications, such as in food and beverage or pharmaceuticals.
7. Scalable Output Options
- Compatible with SCADA, IoT platforms, and advanced monitoring systems.
- Outputs include analog signals, digital interfaces, and wireless communication.
Disadvantages of Ultrasonic Flow Meters
1. High Initial Cost
- Advanced technology comes with a premium price.
- Clamp-on models are often more expensive than traditional flow meters.
2. Performance Depends on Fluid Conditions
- Clean Fluids: Transit-time models may fail in fluids with significant solids or air bubbles.
- Particulate-Free Fluids: Doppler models require particulates or bubbles to function.
3. Limited Gas Measurement
- Typically designed for liquid flow; gas flow applications are limited and less accurate.
4. Installation Sensitivity
- Accuracy depends on proper sensor alignment and installation.
- Errors may occur if pipe walls are not uniform or if the pipe material dampens ultrasonic signals.
5. Dependence on Pipe Material
- Certain materials, like heavily corroded or lined pipes, can distort ultrasonic signals.
- May not be suitable for highly irregular or deteriorated pipelines.
6. Temperature and Pressure Limitations
- While some models support extreme conditions, others are restricted to standard ranges.
- Requires careful selection of the right model for demanding applications.
7. Signal Interference
- External noise or vibrations can interfere with the accuracy of ultrasonic signals.
- May require additional insulation or calibration in noisy industrial environments.
Key Ultrasonic Flow Meter Advantages and Applications
- Water and Wastewater: Measure flow in treatment plants or pipelines.
- HVAC Systems: Optimize chilled water and heating loops.
- Oil and Gas: Non-intrusive measurement for crude oil and refined products.
- Food and Beverage: Safe, hygienic measurement for clean fluids.
- Chemical Processing: Monitor corrosive or high-viscosity fluids without exposure.
Choosing the Right Ultrasonic Flow Meter
To maximize the advantages and minimize the disadvantages, consider the following factors:
- Fluid Type: Ensure the selected model aligns with the fluid’s characteristics.
- Pipe Material: Check compatibility to avoid signal distortion.
- Application Environment: Consider temperature, pressure, and noise levels.
- Budget: Balance initial cost with long-term savings in maintenance and operation.
Ultrasonic Flow Meter Advantages and Disadvantages: Conclusion
Key ultrasonic flow meter advantages include unmatched flexibility, precision, and durability for various industrial applications. However, understanding their limitations—such as higher upfront costs and sensitivity to certain conditions—is essential for successful deployment.
By choosing the right model and ensuring proper installation, you can harness the full potential of ultrasonic flow meters while mitigating their disadvantages. Whether for clean water, slurries, or specialized industrial processes, ultrasonic flow meters remain a robust solution for modern flow measurement needs.
