How to Measure the Water Content in Aggregates
Determining Moisture in Aggregates for Mix Proportioning
Measuring the water content in aggregate is a critical process in the construction industry, affecting the quality and durability of concrete, asphalt, and other materials. Accurate measurement ensures the optimal performance of the final product by maintaining the right mix ratios. This article will explore traditional methods for measuring water content and introduce the SONO-VARIO online moisture sensor, which offers superior accuracy and efficiency for precast, ready-mix, and asphalt production plants.
Traditional Methods for Measuring Water Content
Rule-of-Thumb Method
One basic approach involves estimating the free moisture content based on typical values. Sand can contribute about 2 to 6 percent free moisture by weight, while gravel or stone may contribute about 1 to 2 percent. For example, if you have 106 pounds of sand, it might be considered equivalent to 100 pounds of sand in a saturated surface dry (SSD) condition, with the remaining 6 pounds representing free moisture. While this method is quick and simple, it can lead to inconsistencies, especially under varying weather conditions.
Oven Drying Method
For more precise control, the oven drying method is commonly used. A sample of aggregate is weighed and then dried in an oven at 110°C (230°F) for 24 hours. The difference in weight before and after drying represents the moisture content. Although accurate, this method is time-consuming and labor-intensive. Some operators use a microwave oven to speed up the process, drying the sample for about 30 to 40 minutes. However, this approach still requires careful handling and can be less consistent.
Example for Test on Sand:
- Weight of wet sand sample: 4.50 pounds
- Oven dried weight: 4.20 pounds
- SSD weight (assuming 1.5% absorption): 4.20 x 1.015 = 4.26 pounds
- Free moisture: 4.50 – 4.26 = 0.24 pounds
- Free moisture percentage of SSD weight: (0.24 / 4.26) x 100 = 5.6%
Speedy Moisture Tester
Another traditional method involves the Speedy Moisture Tester, which uses calcium carbide to measure moisture content. A sample is placed in the tester along with calcium carbide, and the resulting reaction produces acetylene gas. The amount of gas produced is proportional to the moisture content. This method is quick, taking about three minutes per test, but it requires handling chemicals and calibration to ensure accuracy. It is also less suitable for continuous, large-scale operations due to the need for multiple tests to verify results.

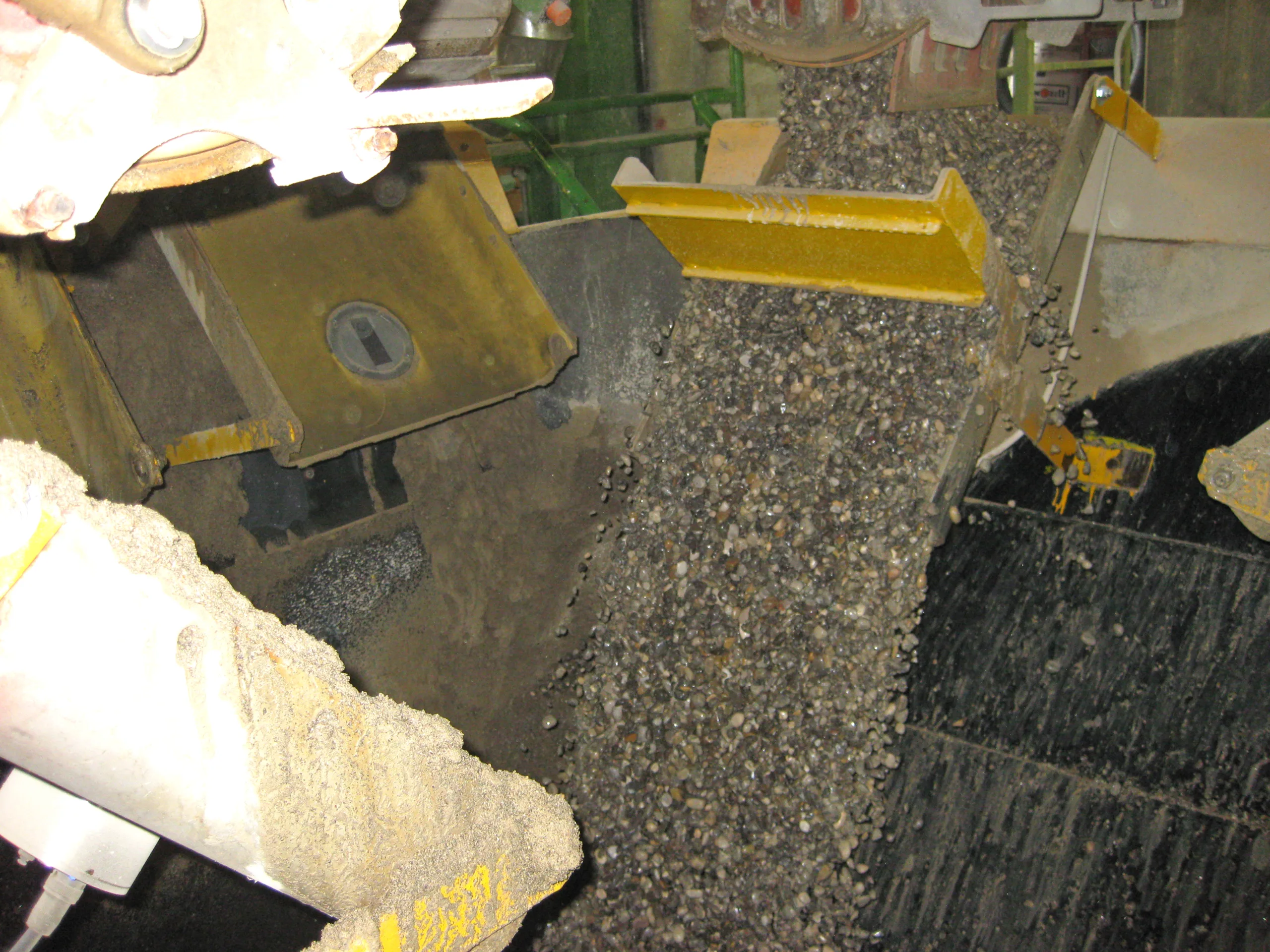

Introducing the SONO-VARIO Online Moisture Sensor
The SONO-VARIO online moisture sensor is a state-of-the-art device designed to overcome the limitations of traditional methods. It employs the Time Domain Reflectometry (TDR) principle to provide real-time, accurate moisture measurements.
Technical Advantages
-
Accuracy and Precision: The TDR principle measures the time it takes for an electromagnetic pulse to travel through the aggregate. This method is highly accurate, capable of detecting even small variations in moisture content.
-
Real-Time Data: Unlike traditional methods that require sample collection and processing time, the SONO-VARIO sensor provides continuous, real-time moisture data. This capability allows for immediate adjustments in the production process, ensuring consistent quality.
-
Non-Destructive: The sensor operates without altering the aggregate, preserving the sample for further use. This non-destructive testing is advantageous in maintaining the integrity of the material.
-
Ease of Integration: The SONO-VARIO sensor can be easily integrated into existing production systems, providing seamless upgrades to moisture measurement processes. Its robust design ensures durability and reliability in industrial environments.
Application in Precast, Readymix, and Asphalt Production Plants
-
Precast Concrete: Consistent moisture content is crucial for producing high-quality precast elements. The SONO-VARIO sensor ensures precise water content measurement, leading to improved strength, durability, and surface finish of precast products.
-
Readymix Concrete: In ready-mix operations, the moisture content of aggregates significantly affects the water-cement ratio. The SONO-VARIO sensor provides real-time data, enabling operators to adjust water addition on-the-fly, ensuring optimal mix consistency and performance.
-
Asphalt Production: The moisture content of aggregates influences the temperature and mixing time in asphalt production. The SONO-VARIO sensor helps maintain the correct moisture levels, leading to better compaction, reduced drying times, and improved overall quality of the asphalt mix.
Technical Comparison: Traditional Methods vs SONO-VARIO Sensor
| Feature | Traditional Methods | SONO-VARIO Sensor |
| Accuracy | Moderate to High | Very High |
| Time Required | Hours to Days | Real-Time |
| Sample Destruction | Yes (in most methods) | No |
| Integration with Production | Manual, often requires sample transport | Seamless, integrates with production line |
| Maintenance and Handling | High (oven, chemicals, probes) | Low (robust design) |
Ready to Revolutionize your Process?
While traditional methods for measuring water content in aggregate have served the industry for many years, they come with significant drawbacks, including time consumption, labor intensity, and varying degrees of accuracy. The SONO-VARIO online moisture sensor, leveraging TDR technology, offers a superior alternative. Its real-time, precise measurements and ease of integration make it an invaluable tool for precast, readymix, and asphalt production plants, enhancing the quality and efficiency of the production process.
By adopting the SONO-VARIO sensor, production facilities can ensure consistent quality, reduce waste, and improve overall operational efficiency, setting a new standard in moisture measurement for the construction industry.
For detailed information about our range of sand and aggregate moisture probes, please review our complete product guide.
