Eurosens Direct® Fuel Flow Meter
$272.00 – $590.00
Eurosens Direct® Fuel Flow Meter, a state-of-the-art solution designed for single supply line fuel systems.
- Description
- Specification
- Downloads
- Features
Description

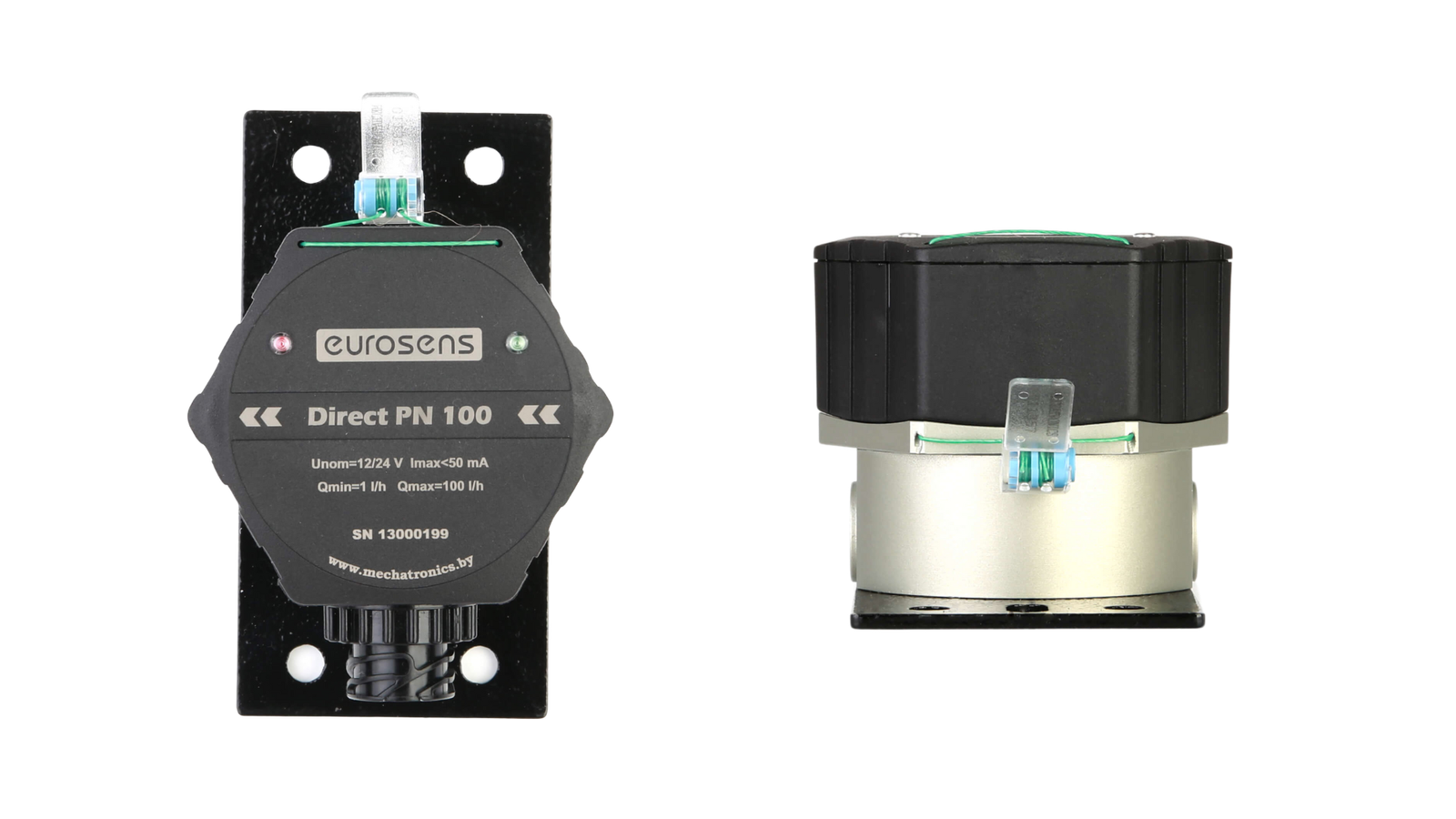

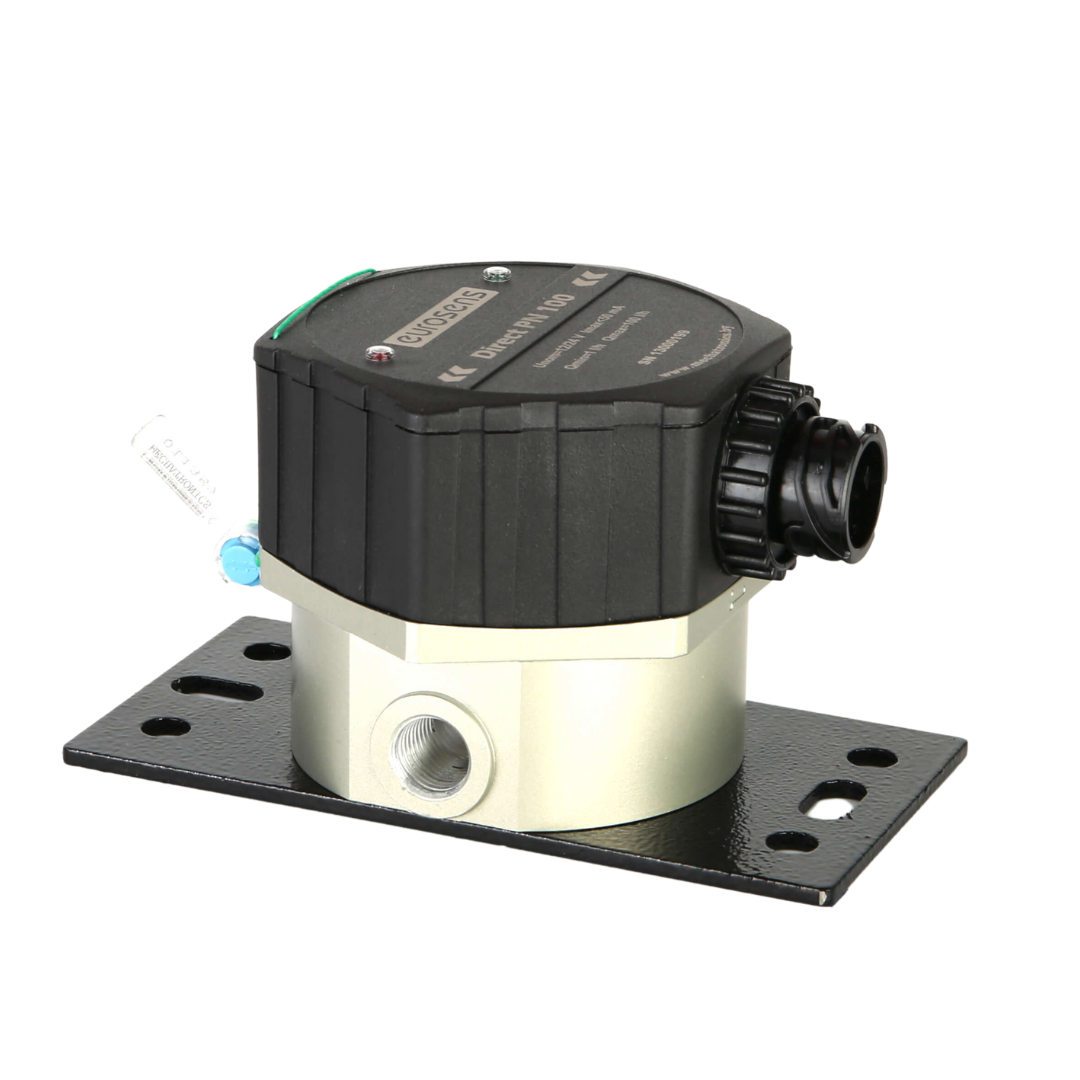

Eurosens Direct® Fuel Flow Meter
Eurosens Direct® Fuel Flow Meter, a cutting-edge solution tailored for single supply line fuel systems, is made of tough aluminum alloy or brass. The measuring chamber has a special extra-resistant coating. Each fuel consumption meter is tested and calibrated on an automated calibration stand called Eurosens Detector. All versions of fuel consumption meters have a built-in temperature sensor that corrects the measured fuel volume depending on the fuel temperature. Fuel meters cover consumption rates of 100, 250, 500, 1500, and 3000 liters per hour (L/h).

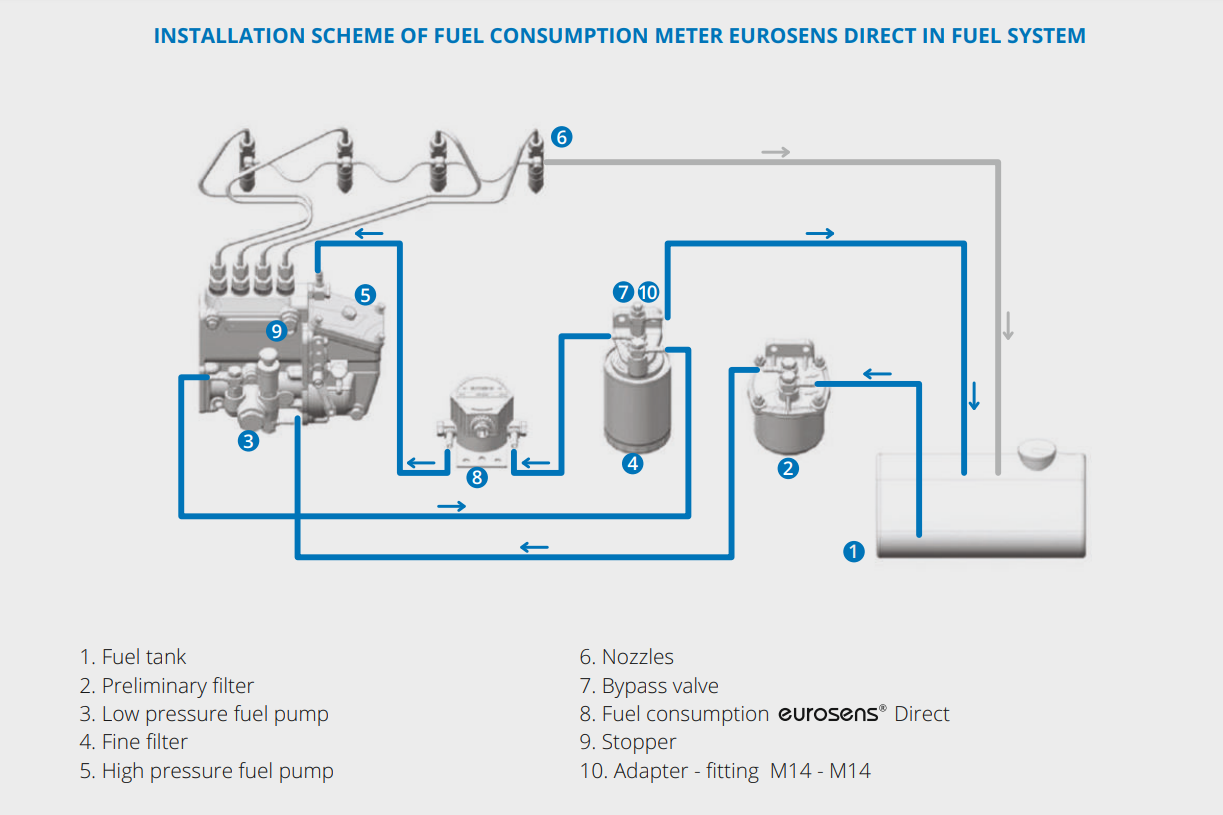

Fuel Systems with Single Supply Line
- In a single supply line setup, fuel flows from the fuel tank to the engine and is not returned back to the tank.
- This setup is simpler and often cheaper to implement as it requires fewer components.
- It’s typically used in older or simpler fuel systems where fuel recirculation for pressure regulation or emissions control isn’t necessary.
Why Eurosens Direct® Fuel Flow Meter?
- Calibration-Free: Ready to use. No on-site complex calibration needed.
- Versatile Range: Flow options from 1 to 5000 liters per hour (L/H).
- Built-In Displays (optional): Real-time data at your fingertips.
- Output Flexibility: Various communication interfaces available.
- Comprehensive Data: Access over 20 fuel related parameters.
- Rugged Construction: Corrosion-resistant aluminum alloy.
- Pinpoint Accuracy: Temperature-corrected precise measurement.
- Electronics Protection: Strong circuit protection.
- Magnetic-Resistant: Equipped with Hall sensors.
- Generous Warranty: 3-year warranty.
- Software Compatibility: Compatible with all major telematics & GPS tracking softwares.
- Deaerator (optional): Enhances operational efficiency.
| Connecting thread | M14x1, 5 |
| Max pressure | 2.5 MPa |
| Power voltage, V | 10 – 50 |
| Reverse polarity protection | Yes |
| Measuring accuracy | ±1% |
| Temperature range,°C | -40 – +85 |
| Maximum flow rate in l/h | 500 |
| Output interface | pulses, RS232, RS485, K-Line, CAN |
| Seal rating | IP 67 |
Q start – flow rate when fuel meter starts to measure Q min , Q max – Min and Max flow rate for range with declared precision.
| Direct PN100 | Q start (l/h)
0,5 |
Q min (l/h)
1 |
Q avg (l/h)
50 |
Q max (l/h)
100 |
Accuracy
± 1% |
|
| Direct PN250 | 0,5 | 2 | 125 | 250 | ± 1% | |
| Direct PN500 | 1,0 | 5 | 250 | 500 | ± 1% |
INTERFACE OPTIONS:
- Frequency, Hz
- RS-232
- RS-485 (LLS, Modbus)
- CAN (J1939, NMEA 2000)
- ISO 9141 (K-Line)
KEY FEATURES:
- Smart data processing
- Tamper protection and alarm
- Magnetic field immunity
- Easy maintenance
