Magnetic Flow Meter FLOW-38
FLOW-38 magnetic flow meter is suitable for all conductive or water-based liquids such as wastewater and domestic water where high accuracy is needed.
- Description
- Additional information
- Downloads
Description
What is a Magnetic Flow Meter?
An Electromagnetic flow meter, also referred to as magnetic flow meter or mag meter, is suitable for flow measurement of chemicals, water, slurries, and wastewater with high accuracy (better than ±0.5%).
A mag meter features no moving components, thus avoiding pressure drops within the system. They are ideal for monitoring all conductive or water-based liquids such as domestic water, wastewater, effluent discharge, raw sewage, irrigation water, etc. These meters offer cost-effective, reliable, and accurate volumetric flow measurement, and they work bidirectionally.
How Does a Magnetic Flow Meter Work?

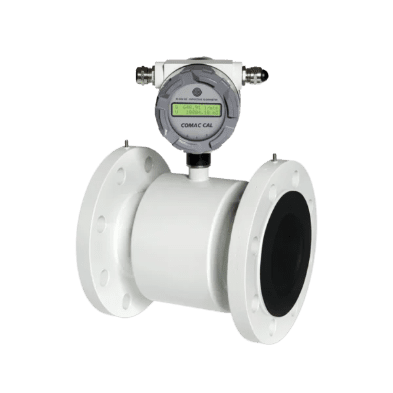

A magnetic flow meter, such as our FLOW-38, consists of a flow sensor (comprising a flow tube with electrodes and magnetic coils) and a transmitter (which serves as the evaluation unit or field display). Together, these components measure liquid flow effectively with high accuracy.
Positioned in-line, the flow meter detects an induced voltage as the liquid moves through the flow tube. The transmitter then converts this voltage into a flow measurement value, which it sends to either a local display or a control system. Learn more about magnetic flow meter principle here.
Why Choose FLOW-38 Magnetic Flow Meter?
The FLOW-38 magnetic flow meter is designed for a wide range of liquid flow measurement applications in various industries such as water & waste water, agriculture or irrigation systems, food processing (dairies, breweries, etc.), paper industry, power engineering or mining. Because the electromagnetic flow meter design does not leave any protruded wetted parts or obstructions in the pipe, they can be used for an array of applications from clean and sanitary liquids to slurries and highly abrasive or corrosive fluids.
FLOW 38 Magnetic Flow Meter Benefits:
› Accurate and Repeatable Measurements
Our FLOW-38 mag meter features complex, processor-based signal processing with accuracy up to ±0.5%, and repeatability of up to ±0.2 % (depending on site conidtions).
› Suitable for a Wide Range of Liquids
Our mag meters can measure all conductive (water-based) liquids such as water or wastewater, and other water-based liquids that have a minimum electrical conductivity, making it a versatile solution for a plethora of applications.
› Has No Moving Parts
The FLOW 38 flow meter does not have any moving parts in the flow tube, hence minimizing periodic maintenance requirements thus increasing plant availability and profitability.
› FLOW 38 Magnetic Flow Meter is Highly Customizable

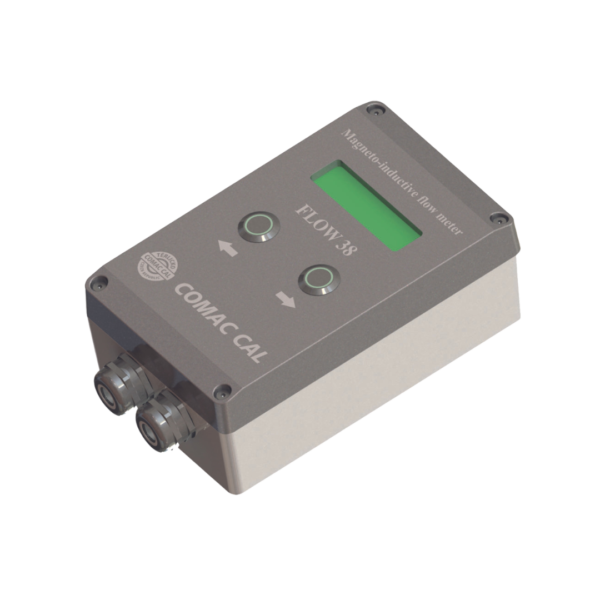

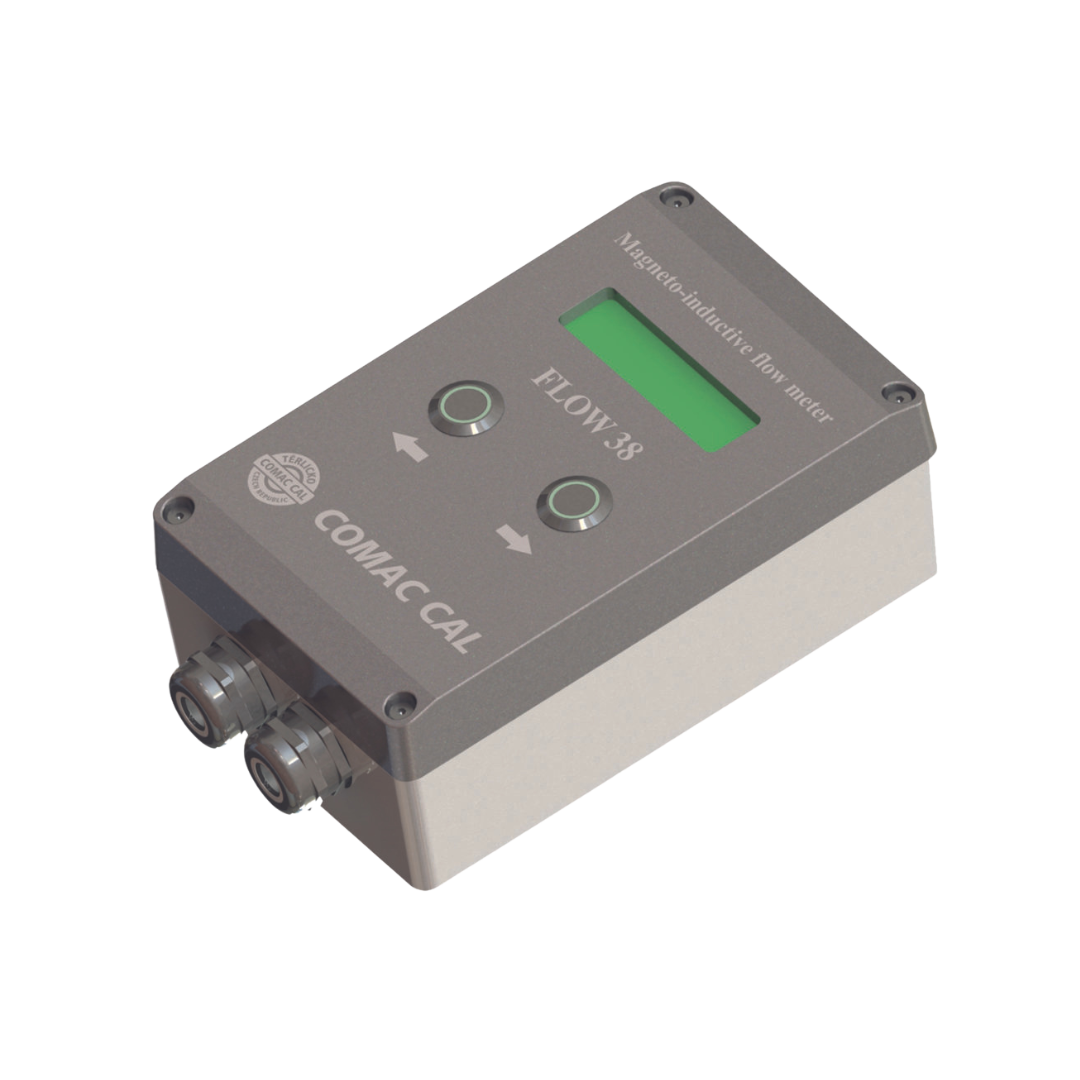

The transmitter is offered in three designs to meet any site requirement: meter mounted, wall mounted, and panel mounted.
Are you concerned that your existing in-line flow meters are not performing as per specified accuracy? You now have the option to rent our portable Uf 801-P ultrasonic flow meter to verify the accuracy of your flow meters. Or you may contact us for a meter verification service by an experienced engineer.
Additional information
| Flow Meter Type | Electromagnetic flow meter |
|---|---|
| Fluid Type | Water, Acids, Alkalis, Chemicals |
| Pipe Size Range | DN6-DN400 |
| Lining material | Rubber, PTFE, Ceramics, PEEK |
| Measured Paramaters | Volumetric flowrate, Totalizers, Signal quality |
| Display | Digital Display. Wall-Mounted or Meter-Mounted. |
| Communication | Modbus RS485, Analog Outputs |
| Power supply | 230 VAC (50/60 Hz), 24 VDC |
| Electrode Material | CrNi steel DIN 1.4571, Hastelloy C4, Titanium, Tantalum, Platinum |
| Protection | Electronics Protection Class: IP67 |
| Accuracy | Accuracy up to 0.5 %, repeatability up to 0.2 % |
| Process Connections | Sandwich, Flange, Thread, Food Grade Clamp |
