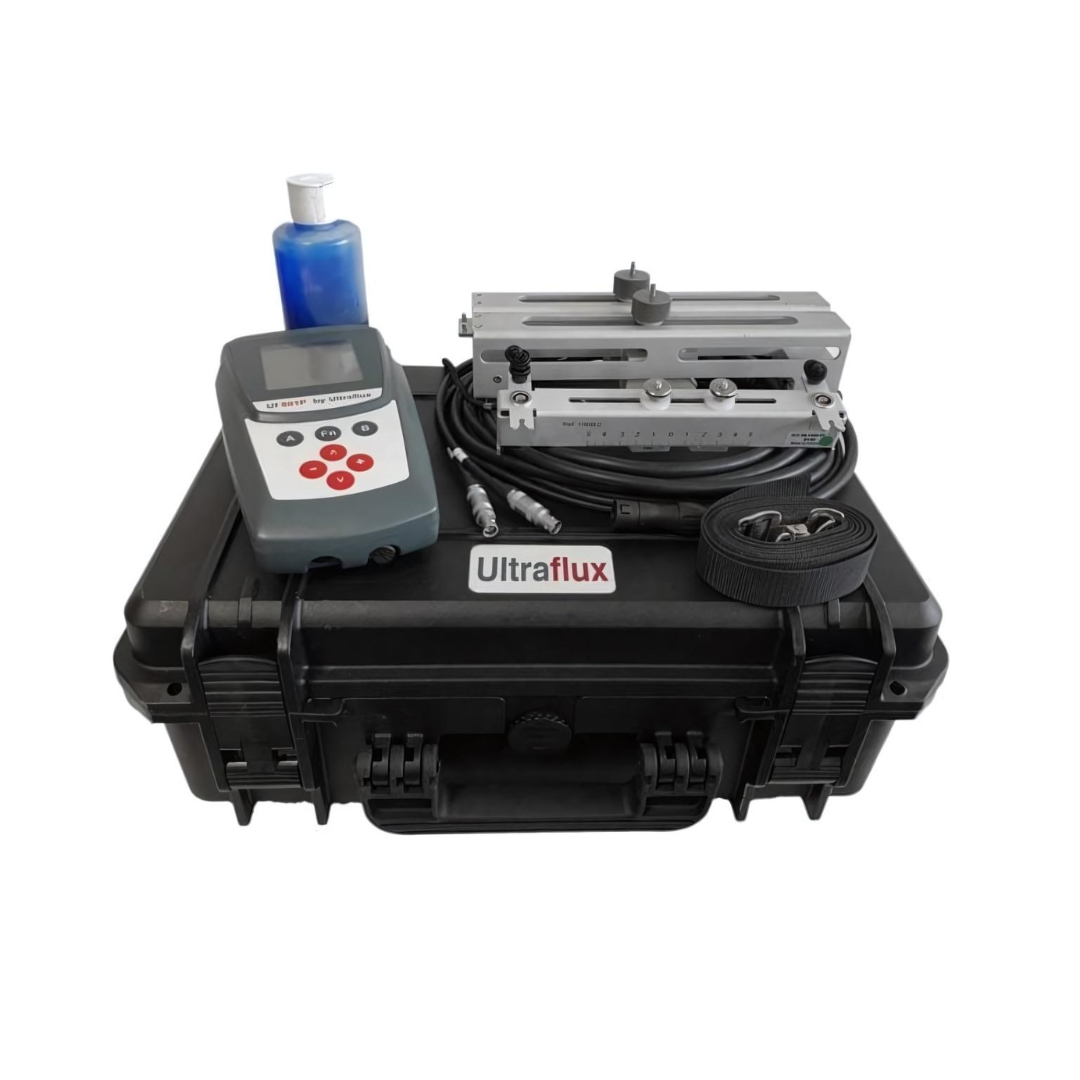

Portable Clamp-On Flow Meter – Ultraflux Uf 801
Robust Portable Clamp-On Flow Meter for fast and precise non-invasive flow measurement for most liquids, including water, wastewater, and corrosive chemicals. Introducing the Ultraflux Uf 801 Portable Ultrasonic Flow Meter for all your flow measurement needs.
Key Features of Uf801 Portable Clamp-On Flow Meter
- Portable ultrasonic flow meter (no pipe cuts or drilling).
- Works on plastic or metal pipes 0.5 inches up to 390″.
- Measure clean liquids with minor aeration (less than 5%).
- DSP (Digital Signal Processing) processor.
- Automatic Reynolds Number detection for turbulent conditions.
- User-friendly menu and interface – setup in 5 minutes!
- Battery life up to two months, using sleep function
- Graphic screen with diagnostic functions
- Built-in multi-parameter data logger
- Optional energy kit for energy measurement (BTU, Kilowatts, etc)
Are Ultrasonic Flow Meters Accurate?
The accuracy of ultrasonic flow meters, typically averaging 1-2%, can be further enhanced to around 0.5% with field calibration or by utilizing advanced models like multiple-path flow meters. However, it’s important to note that their accuracy is highly influenced by site conditions such as pipe quality, rust buildup, scaling, straight pipe run, and turbulence. These factors can introduce disturbances in the flow profile, impacting the ultrasonic signals and thus affecting measurement accuracy. Therefore, proper attention to site conditions during installation and regular maintenance is crucial for ensuring the optimal performance and accuracy of ultrasonic flow meters.
How Does an Ultrasonic Flow Meter Work?

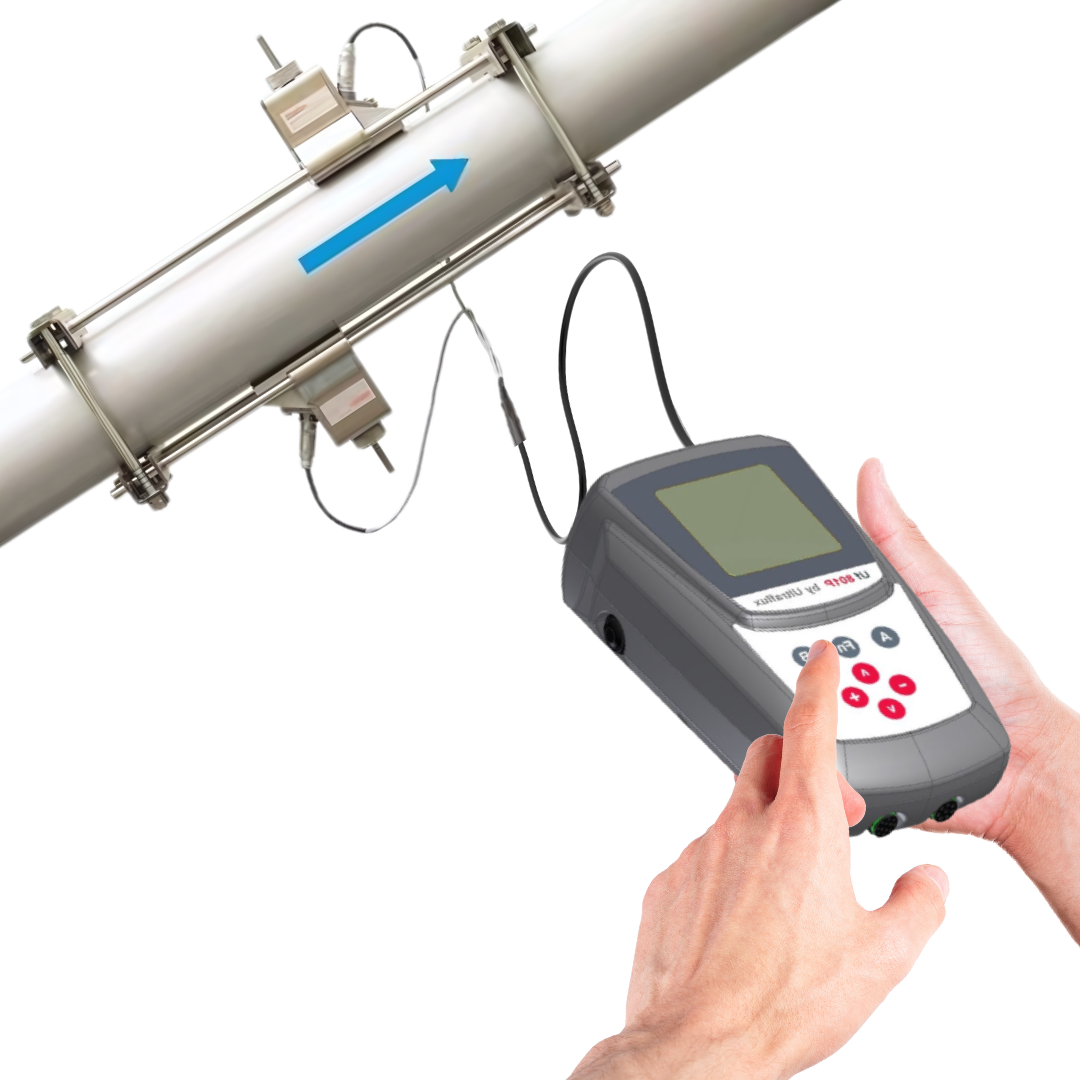

The Uf 801-P Portable Ultrasonic Flow Meter operates on the principle of ultrasonic transit-time. It uses a pair of ultrasonic transducers that work in tandem. These transducers alternate between transmitting and receiving ultrasonic signals. The meter measures the transit time difference between the transmitted and received signals, a difference used to determine the flow rate based on the principle of time-of-flight.
How to Install the Uf801 Portable Clamp-On Flow Meter?
An ultrasonic flow meter is typically installed in a section of straight pipe to ensure optimal measurement accuracy. This straight pipe section (10 x Diameters upstream and 5 x Diameters downstream) allows the flow profile to fully develop, meaning that the flow pattern becomes stable and uniform. Installing the meter in this location minimizes the impact of turbulence or irregular flow patterns on the measurement readings. Additionally, the meter should be placed where there are no significant obstructions or disturbances (pumps, valves, elbows, T’s, etc) that could affect the flow profile. This ensures that the ultrasonic sensors can accurately transmit and receive signals across the fluid stream, providing reliable flow measurements.
Key Applications – Uf801 Portable Ultrasonic Flow Meter
Experience the power of the Ultraflux Uf 801 Portable Ultrasonic Flow Meter, the portable ultrasonic flow meter that sets new standards in performance and versatility across multiple industries and applications. Whether you need accurate measurements for servicing, maintenance, or energy auditing, our flow meter has you covered. Say goodbye to complexity and hello to speed, precision, and reliability.
Oil and Gas:
- Flow meter verification (0.5% accuracy with field calibration)
- Hazardous area flow testing
- Pipeline monitoring
Chemical Processing:
- Batch processing monitoring
- Chemical flow meter verification
HVAC (Heating, Ventilation, and Air Conditioning):
- Energy management
- Chilled water measurement
- Pump flow optimization
- Network leak detection
Power Generation:
- Cooling water flow measurement
- Boiler feedwater monitoring
Food and Beverage:
- Process water measurement
- CIP (Clean-in-Place) system monitoring
Pharmaceutical:
- Process control and monitoring
- Wastewater treatment monitoring
Applications for Professionals:
HVAC: Our flow meter is the ideal choice for HVAC (Heating, Ventilation, and Air Conditioning) applications. It assists with primary and secondary water pump flow verification, network leak detection, bypass-valve control checks, hydraulic balancing, and more, making it an indispensable tool for HVAC professionals.
Flowmeter Verification: Over time, in-line flow meters like turbine or electromagnetic flowmeters can suffer from calibration drift, leading to measurement errors. The Uf 801-P can be quickly installed for accuracy checks, ensuring your flow meters perform within specified accuracy.
Energy Audits: This flow meter is perfect for energy audits and assessing heating and cooling systems. With temperature inputs, it accurately measures supply and return temperatures to calculate energy consumption. It’s an essential tool for energy service professionals looking to optimize energy efficiency.
Leak Detection: When it comes to water leak detection in network pipes, the Uf 801-P is highly sensitive and accurate. It can detect liquid velocities as low as ±0.03 ft/s with precision, making it a must-have for maintenance professionals.
Network Metering: Water utility companies and district cooling plants can use the Uf 801-P for temporary flow measurements at various points in their network, facilitating the analysis of additional metering points needed for improved measurement and control.
